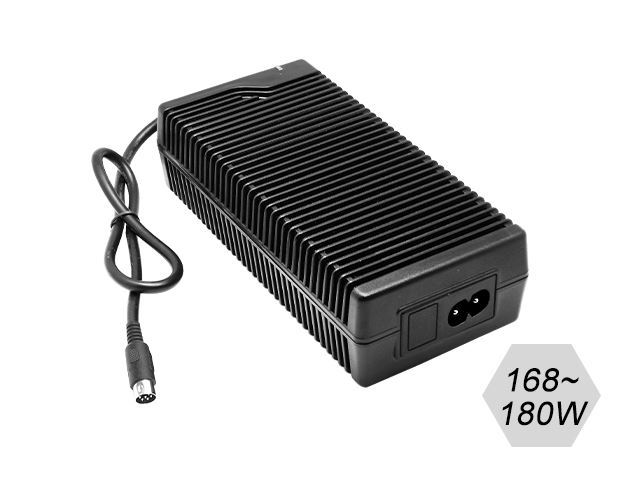

HPU180B

Manufacturer
Power	180.00 W
Package	Desktop
Application	Medical
Input voltage	90-260VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	3 Years
Dimensions	188x89.5x49.3mm
Weight	0.952
Water-cooled option	No

Features:

Wide Operating Voltage, 90 to 260 VAC, 47 to 63 Hz
IEC-320-C8 Input Inlet
Single Output
Crowbar Mode Over Voltage Protection
Input to Output: 2MOPP
On/Off Switch (Optional)
Active Power Factor Correction
High ESD Immunity
Suitable Professional Healthcare Facility
Low Earth Leakage Current < 0.25mA
3-Year Warranty

Description:

The HPU180B series of AC/DC switching mode power supplies provide 180 Watts of continuous output power. All models meet FCC Part-18, CISPR-11 and EN55011 class B emission Limits, IEC 60601-1-2 and are designed to comply with UL/cUL and conformity assessment in CE marking. All units pass burn-in test at full load condition.
