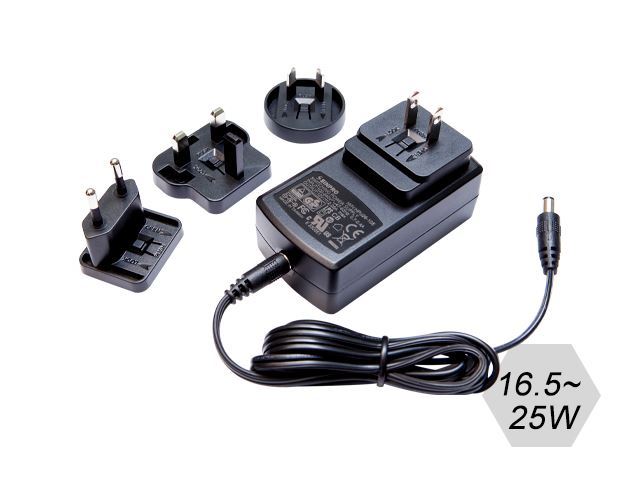

HPU26

Manufacturer
Power	25.00 W
Package	Wall mount
Input voltage	80-275VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	3 Years
Dimensions	93x50x39.3mm
Weight	0.15
Water-cooled option	No

Features:

Wide Operating Voltage, 80 to 275 VAC, 47 to 63 Hz
Interchangeable Plug
Single Output
Short Circuit Protection
Input to Output : 2MOPP
High ESD immunity
Suitable home healthcare environment
Suitable professional healthcare facility
DoE-6
3 year warranty

Description:

The HPU26 series of AC/DC switching mode power supplies provide 25 Watts of continuous output power . All supplies are UL94V-1 min compliant. All models meet FCC Part-18, CISPR-11 and EN55011 class B emission Limits, IEC 60601-1-2:2014 and are designed to comply with UL/cUL, TUV T-mark and conformity assessment in CE marking. All units pass burn-in test at full load condition.
