MDS-350AD701

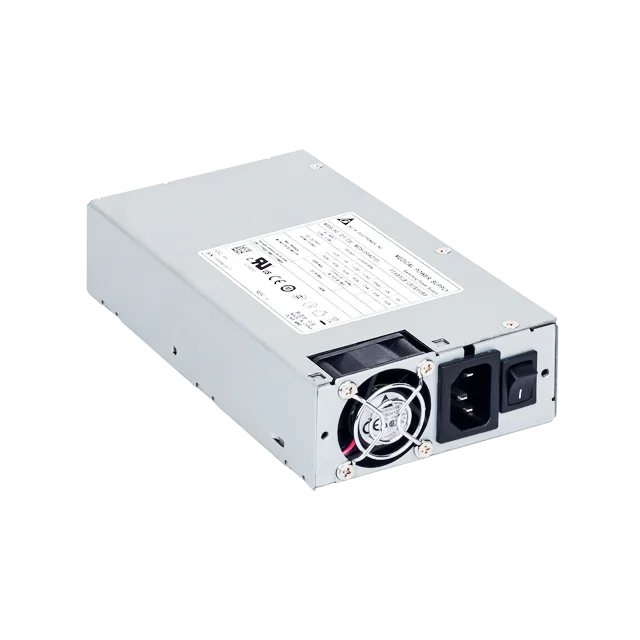

MDS-350AD701 image
Manufacturer Delta logotype
Power 350.00 W
Package Enclosed
Application Medical
Input voltage 90-264VAC
Efficiency 0.00
Available output range (V) 12V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 194x100x40.5mm
Weight 1.20
Water-cooled option No

Features:

  • ATX 12 V standard function & form factor
  • IEC60601-1 (Medical) & IEC 62368-1 (ITE) approvals
  • Suitable for type BF patient access applications
  • Built-in active PFC
  • Maximum output power of 350 watts
  • Compliant with IEC 60601-1-2 4th Ed. Requirements

Description:

The MDS-350AD701 series of internal ATX power supplies comes with universal AC input from 90 Vac to 264 Vac. Other features include low leakage, availability of risk management report, and electric shock protection compliant with 2 x MOPP requirements. The MDS series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment; and, EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment. The MDS-350AD701 series comes with both Medical and ITE safety approvals, including UL/CE (5000 m) and CB certification and are fully compliant with RoHS Directive for environmental protection.
