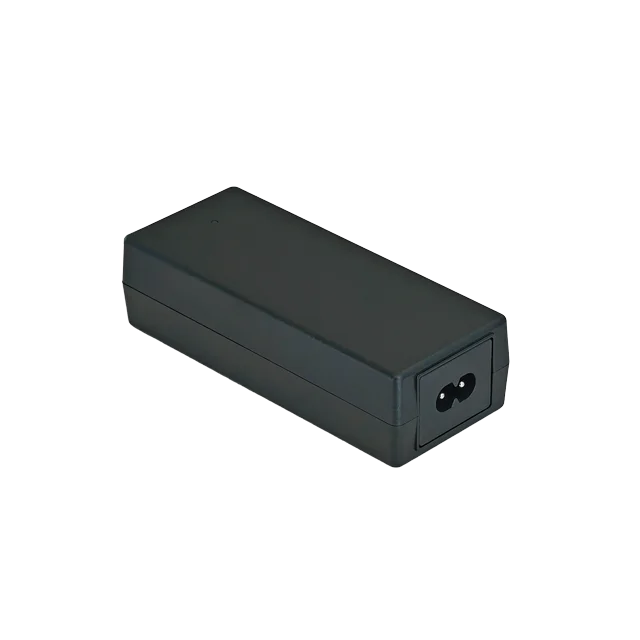

MEA-065A19B

Features:

• Class II, Double Isolation (No Earth connection is required)
• Extreme compact size
• Meet DOE Level VI & CoC Tier 2 energy requirement
• Safety Approvals to IEC 60601-1, IEC 62368-1
• Compliant with IEC 60601-1-2 Ed. 4.1 Requirements
• Low touch current (< 0.1 mA Normal & 0.3 mA single fault)
• 2 × MOPP isolation
• Limited Power Source (LPS) certified

Description:

The MEA-065A series of external power supply come with universal AC input at 90 Vac to 264 Vac. Key features include 0.1 mA low earth leakage and electric shock protection complying with 2 x MOPP. The MEA-065A is certified according to EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and meet EN 55032 for Information Technology Equipment (ITE) radio-frequency equipment. MEA-065A has both medical and ITE safety approvals such as IEC 62368, CB certification and CCC approval. Designs are fully compliant with RoHS for environmental protection.
