MEB-750A48 Series

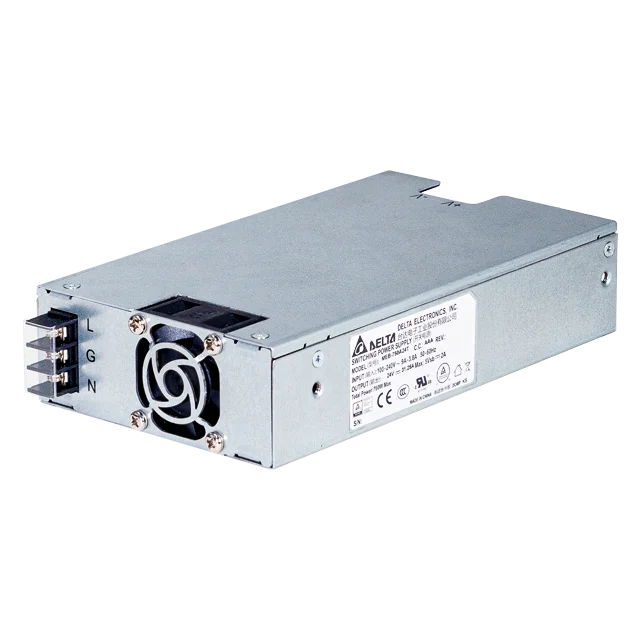

MEB-750A48 Series image
Manufacturer Delta logotype
Power 750.00 W
Package Enclosed
Application Medical
Input voltage 85-264VAC
Efficiency 0.00
Available output range (V) 48V
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 177.8x101.6x40mm
Weight 1.1
Water-cooled option No

Features:

  • Up to 750 Watt in 4" x 7" x 1.575" Package
  • Up to 17 W/inch3 Power Density
  • Full Power from 90 V to 264 V
  • Full Power up to 50°C Ambient
  • Peak Power Boost up to 1200 W (48 V model)
  • Up to 500 KHrs MTBF
  • 2 x MOPP Isolation
  • Suited for Type BF Medical Products.
  • 5 V / 2 A Standby Output
  • Current Sharing
  • Conformal Coating
  • Class B Conducted and Radiated EMI
  • IEC 60601-1-2 4th Edition Immunity Compliance
  • Normal and Reversed Option for Remote On/Off and Power Good Signa
  • Voltage Trimming
