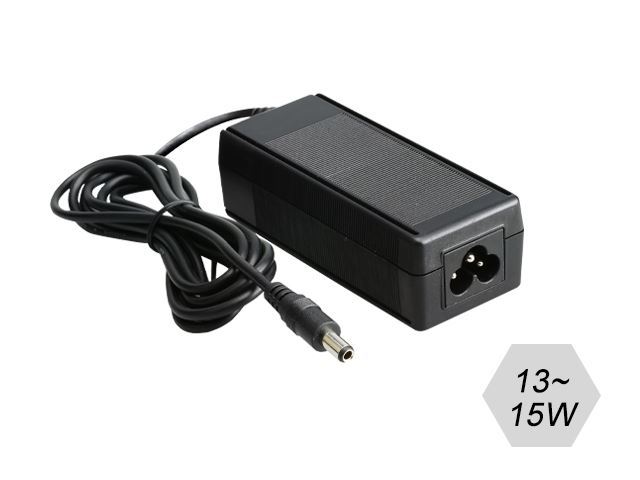

MPU16C

Manufacturer
Power	15.00 W
Package	Desktop
Application	Medical
Input voltage	80-275VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	5 Years
Dimensions	99x42x31mm
Weight	0.17
Water-cooled option	No

Features:

Wide Operating Voltage, 80 to 275 VAC, 47 to 63 Hz
IEC-320-C6 Input Inlet
Single Output
Crowbar Mode Over Voltage Protection
Input to Output: 2MOPP
High ESD Immunity
Suitable Professional Healthcare Facility
Ultra Low Earth Leakage Current < 0.1mA
High Altitude of 3000m
5-Year Warranty

Description:

The MPU16C series of AC/DC switching mode power supplies provide 15 Watts of continuous output power. All models meet FCC Part-18 ,CISPR-11 and EN55011 class B emission Limits, IEC 60601-1-2 and are designed to comply with UL/cUL, TUV T-mark and conformity assessment in CE marking. All units pass burn-in test at full load condition.
