PLD3300-EVCS02-420 Series

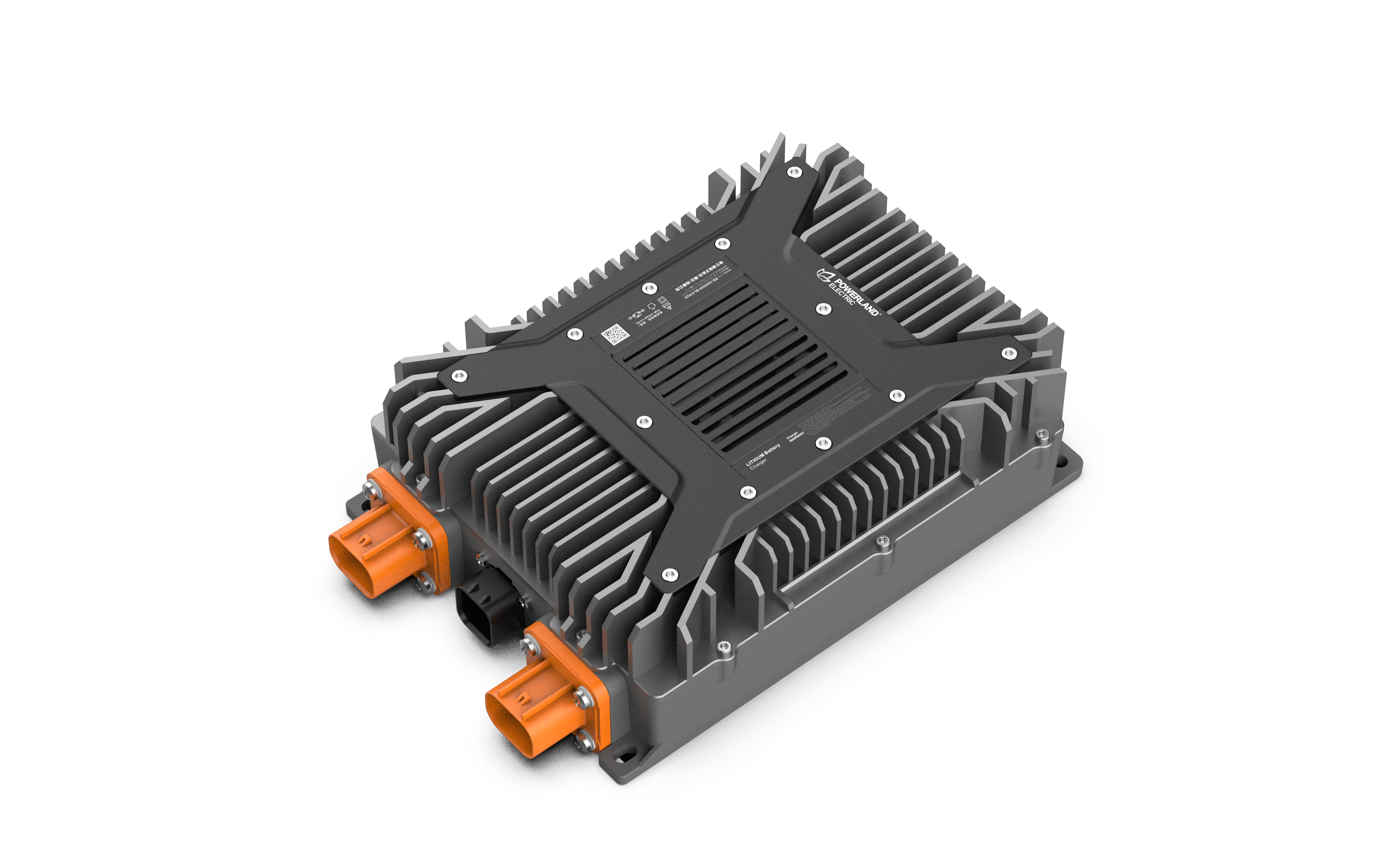

PLD3300-EVCS02-420 Series image
Manufacturer Powerland logotype
Power 3300.00 W
Input voltage 85-265VAC
Efficiency 0.00
Available output range (V) 0-2000
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 272.7x186x71.7mm
Weight 5.0
Water-cooled option No

Features:

  • Universal AC Input: 90~264Vac
  • Output Power: 3.3kW/3.4kW
  • Ultra High Reliable On-Board Design
  • Compatible with Liquid Cooling and Air Cooling
  • All-Around Protections: OVP, OCP, SCP, OTP,UVLO
  • Low Temperature Start Up @ -40ºC
  • High Temperature Full Load Operation @ 60ºC
  • High Efficiency: Up to 96%
  • IP67 Ingress Grade
  • CAN Communication

Description:

Powerland’s “Ruby” series 3.3kW/3.4kW on-board Li-ion battery chargers are designed with ultra high power density, as well as full metal case enclosure. The excellent power conversion efficiency and thermal management provides the on-board standard chargers ultra high reliability and super long life time. This series of chargers offer solid and safe power conversions for applications such as evehicles, e-bus, e-boat, etc.
Download datasheet
