SYM1007 15W Series

Manufacturer
Power	15.00 W
Package	Wall mount
No. of outputs	1
Application	Medical
Input voltage	90-264VAC
Efficiency	0.00
Available output range (V)	5-24VDC
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	83x34x51mm
Weight	0.135
Water-cooled option	No

Features:

For Medical Products
Enclosure
STB
Industrial equipment
2 Years Warranty
Certified changeable plug
W2E - Europe
W3U England
W2 USA, Canada, Japan, Taiwan
W2A Australia
W2C China
W2K Korea
W2I India
Output connector: standard: 2.1 x 5.5 x 11mm or customer requirement
Regulated Output With Low Ripple Noise
Private Label Marking Available
Modified and Custom Design Available

Description:

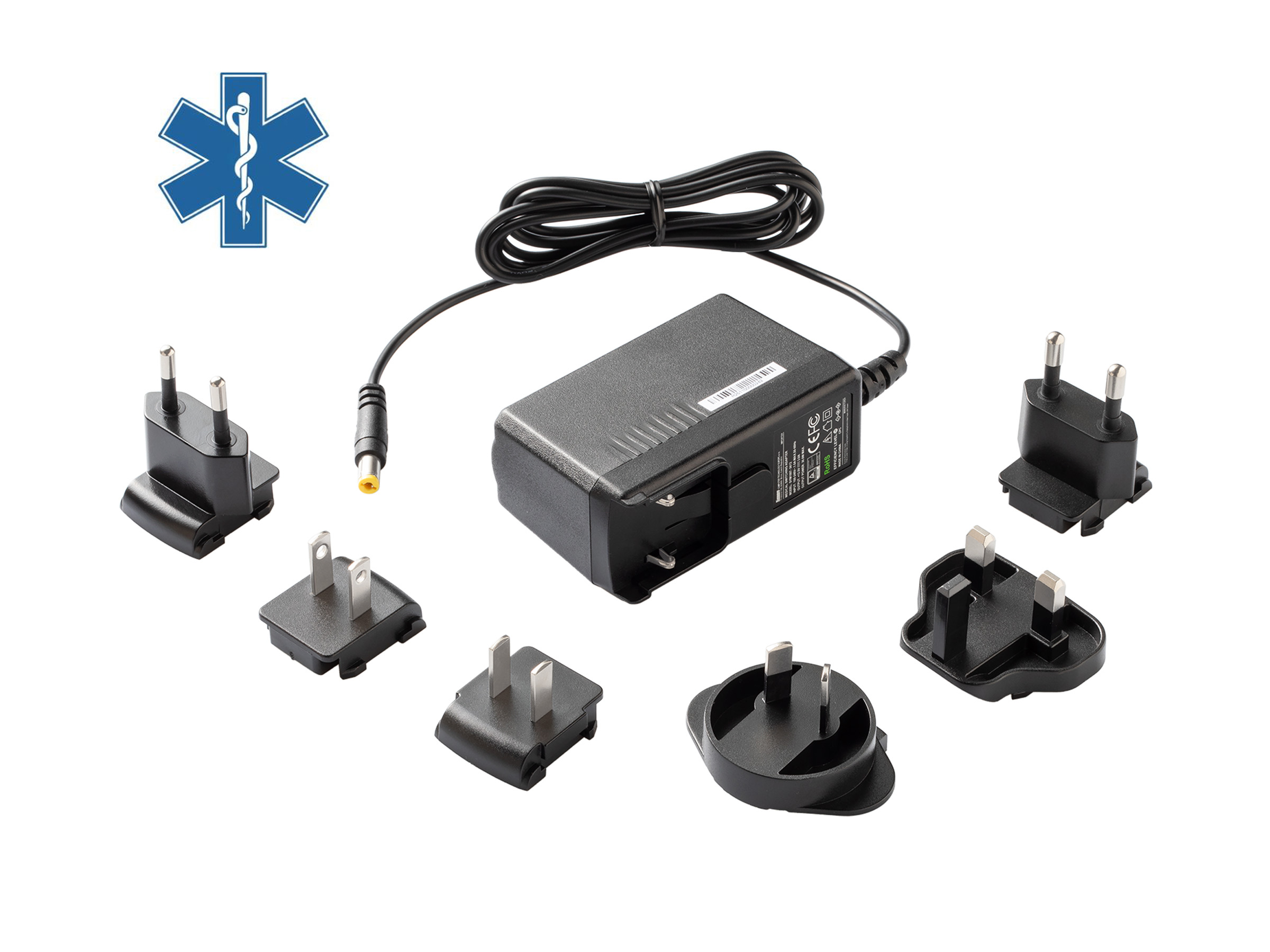

Switching medical wall mount power supplies with interchangeable pins for Europe (W2E), USA/ Canada/ Japan/ Taiwan (W2), United Kingdom (W3U), China (W2C), Australia (W2A), Korea (W2K) or India (W2I). Input voltage 90-264V, output voltage 5-24V, power 11-36W, current 2.1A - 1.5A. Cable length is standard 1.5m with DC connector 2.1x5.5
