SYS1101 Series

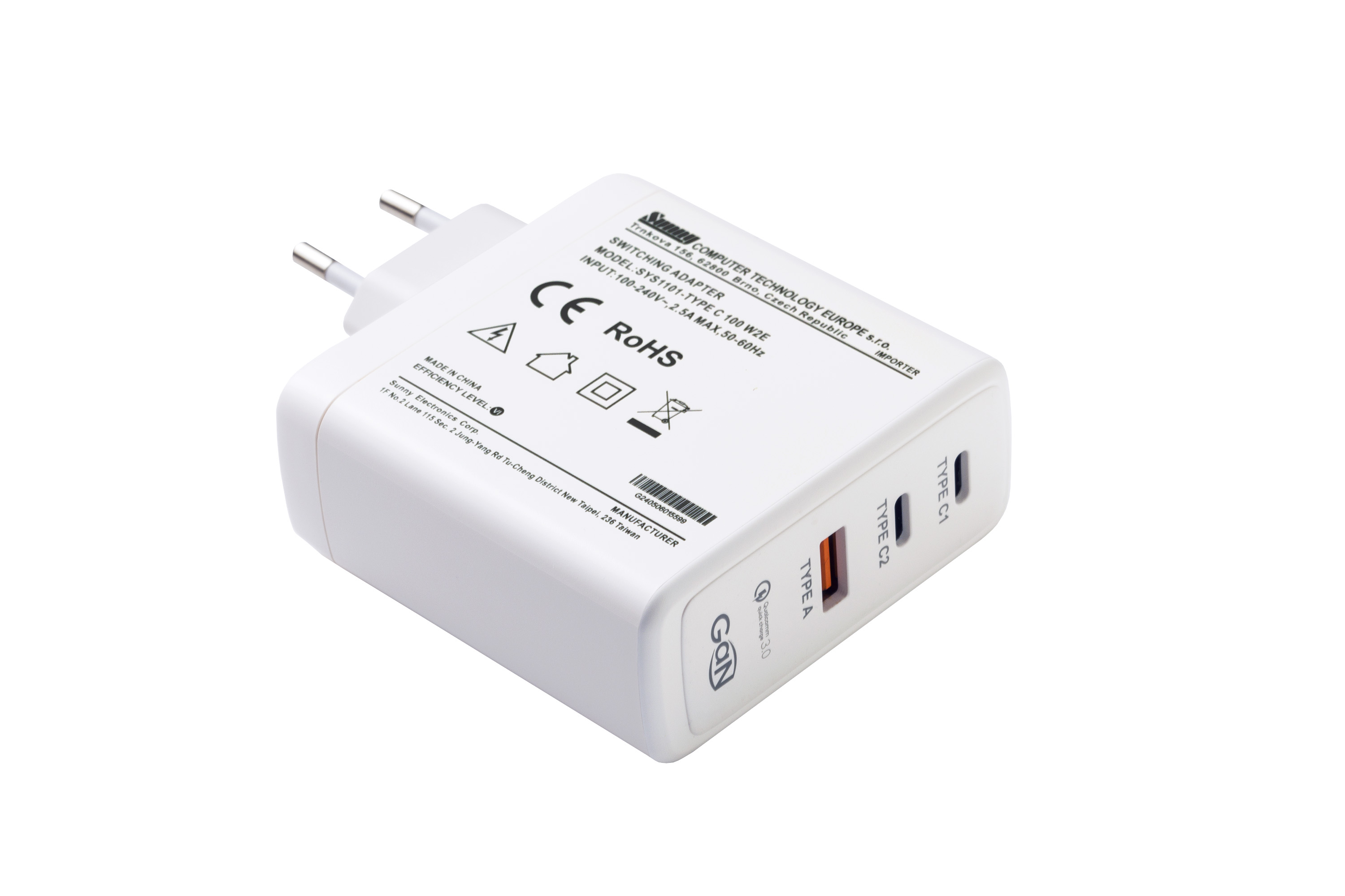

SYS1101 Series image
Manufacturer Sunny logotype
Power 100.00 W
Package Wall mount
No. of outputs 3
Input voltage 90-264VAC
Efficiency 0.00
Available output range (V) 5-21VDC
Max output current 0.00
Electronic load input rating power 0.00
Warranty 2 Years
Dimensions 74x73x31mm
Weight 0.241
Water-cooled option No

Features:

  • GaN technology Power Supply
  • Auto-detect the charging voltage and current for Type C and ios devices
  • Support PD3.0
  • QC3.0
  • PPS protocols
  • PSU housing W2E Europe
  • Output connector: Regulated Output With Low Ripple Noise
  • Safety Agency Requirements and EMI/EMS Certified
  • Private Label Marking Available
  • 2 Years Warranty

Description:

Plug-in switched power supplies with fixed pins for Europe (W2E) or USA/Canada/Japan/Taiwan (W2F), or with interchangeable pins for Europe (W2E), United Kingdom (W3U), China (W2C) or Australia (W2A). Input voltage 90-264V, output voltage 5-20V, power 100W, current 1.5A - 5A. Connector 2x USB-C inlet + 1x USB-A inlet. With fast charging (PD) support and GaN technology. Compatible with iOS and Android.
