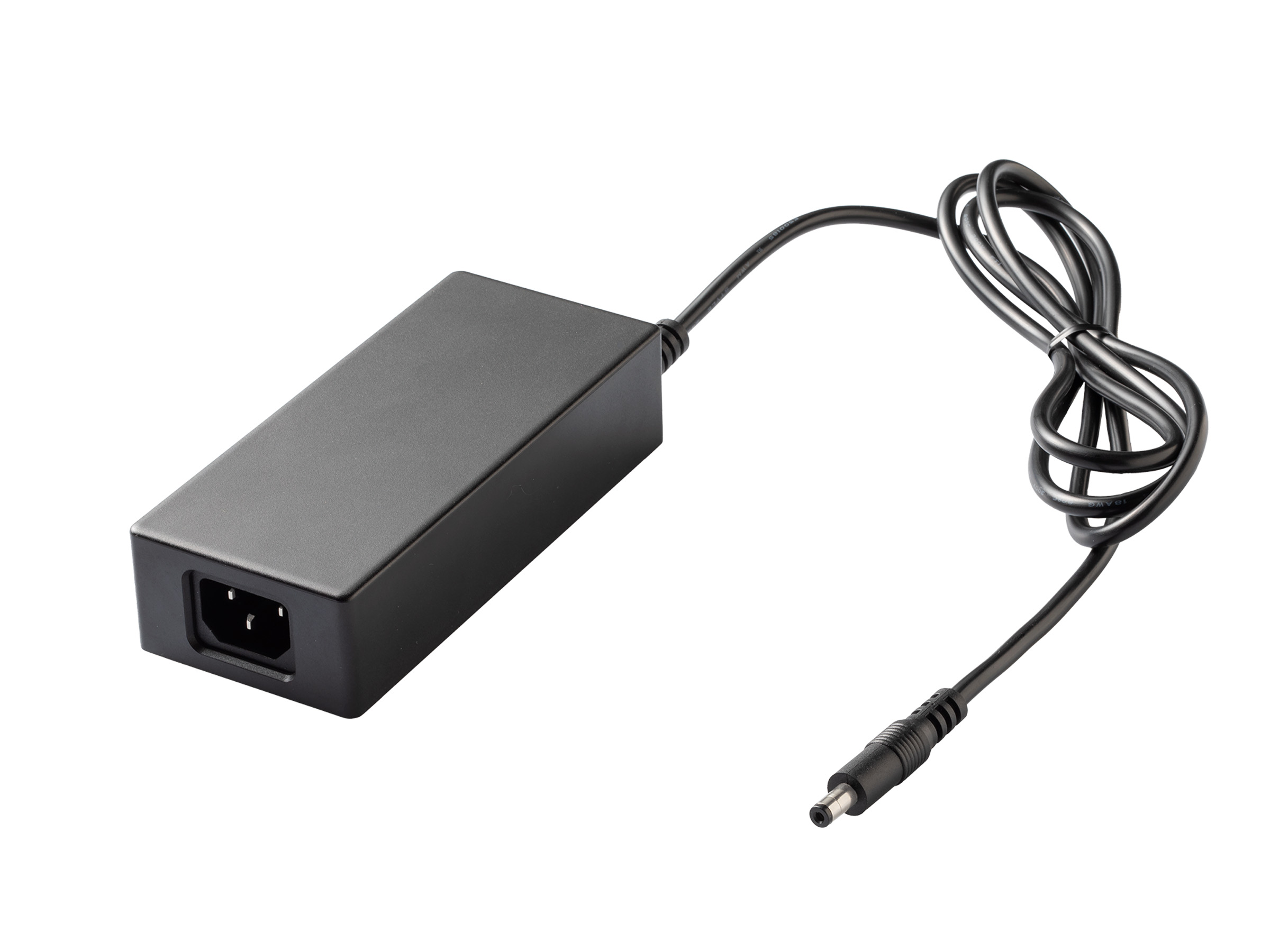

SYS1680-T3 Series

SYS1680-T3 Series image
Manufacturer Sunny logotype
Power 140.00 W
Package Desktop
No. of outputs 1
Input voltage 90-264VAC
Efficiency 0.00
Available output range (V) 12-54VDC
Max output current 0.00
Electronic load input rating power 0.00
Warranty 2 Years
Dimensions 140x61x34mm
Weight 0.450
Water-cooled option No

Features:

  • Available in inlet version: T2 (C7)
  • Output connector: standard: 2.1 x 5.5 x 11mm or customer requirement
  • Regulated Output With Low Ripple Noise
  • Safety Agency Requirements and EMI/EMS Certified
  • Private Label Marking Available
  • Modified and Custom Design Available
  • 2 Years Warranty

Description:

Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12-54V, power 140W. Standard cable length 1.5m with DC connector 2.1x5.5. Suitable mains cable: IEC 320 C13 "PC cable
