MPE Series MEDICAL

Manufacturer
Power	500.00 W
Package	ATX IPC power supply
Input voltage	90-264 VAC
Efficiency	0.00
Available output range (V)	0-500
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	140x150x86mm
Water-cooled option	No

Features:

Design comply with IEC 60601-1 & IEC60950-1
BF Class insulation
Standard ATX size with 150x 140x 86 mm
90-264 VAC input with active PFC
Operating temperature up to +50℃

Description:

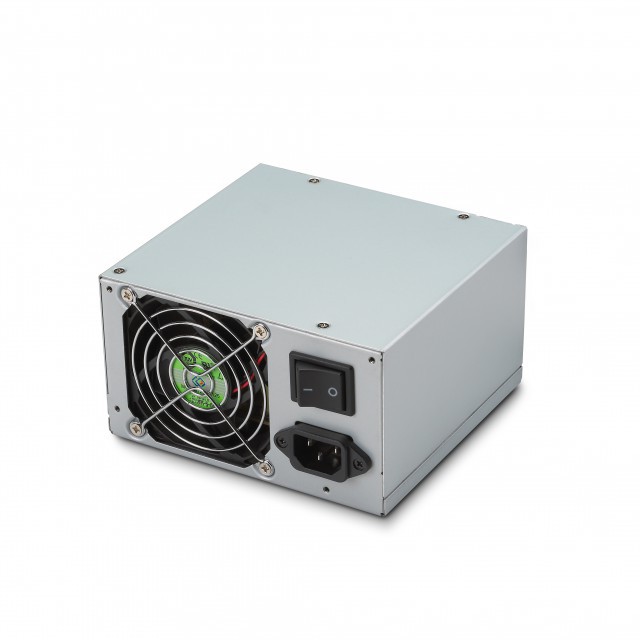

This series of AC/DC switching power supplies in a standard ATX form factor 140 x 150 x 86 mm are capable of delivering 400 or 500 watts continuous power. PSU build in DC/DC converter at +3.3V and +5V output rails to enhance load regulation.

Download datasheet
