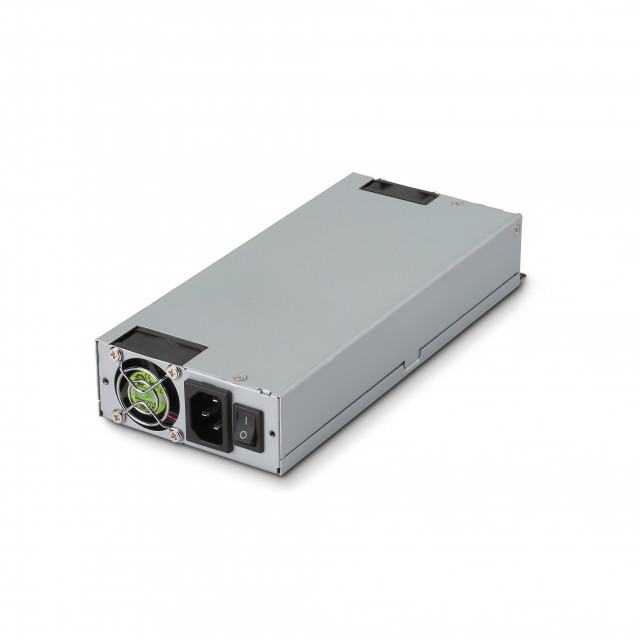

PA Series MEDICAL

PA Series MEDICAL image
Manufacturer FSP logotype
Power 500.00 W
Package ATX IPC power supply
Input voltage 90-264 VAC
Efficiency 0.00
Available output range (V) 0-500
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 220x100x40.5mm
Water-cooled option No

Features:

  • Design comply with IEC 60601-1 and IEC 60950-1
  • BF Class insulation
  • High efficiency meet 80PLUS GOLD
  • Design meet INTEL (Haswell) platform requirement
  • High altitude 5000 meters operation

Description:

This series of AC/DC switching power supplies in a standard 1U ATX form factor 220 x 100 x 40.5 mm are capable of delivering 400 or 500 watts continuous power. PSU build in DC/DC converter at +3.3V and +5V output rails to enhance load regulation. High efficiency design comply with 80PLUS GOLD efficiency.
