DC/AC inverters
ODX-6000 Railway
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODX-6000 Railway
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 24/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 400Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 455.44x260.4x84.8mm |
| Weight | 8.95 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODX-6000 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-6000 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODX-6000 Industrial
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODX-6000 Industrial
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 24/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 400Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 455.44x260.4x84.8mm |
| Weight | 8.95 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODX-6000 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-6000 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODX-4500 Railway
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODX-4500 Railway
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 72/100/110/571Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 400Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 408x224x82.5mm |
| Weight | 7.24 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODX-4500 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-4500 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODX-4500 Industrial
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODX-4500 Industrial
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 72/100/110/571Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 400Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 408x224x82.5mm |
| Weight | 7.24 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODX-4500 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-4500 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODX-3000 Railway
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODX-3000 Railway
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 230-400Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 408x224x80.5mm |
| Weight | 7.15 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODX-3000 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-3000 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODX-3000 Industrial
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODX-3000 Industrial
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 230-400Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 408x224x80.5mm |
| Weight | 7.15 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODX-3000 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-3000 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |

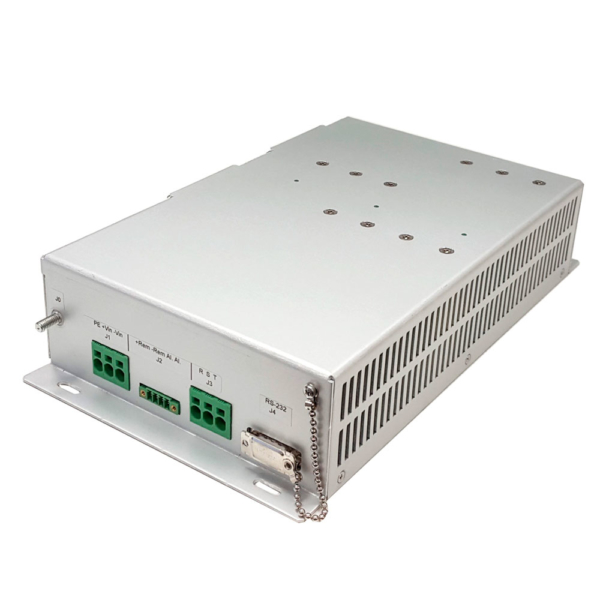

ODX-1300 Railway
| Manufacturer | Premium |
| Power | 1300.00 W |
| Package | Enclosed |
| No. of outputs | 1 |
ODX-1300 Railway
| Manufacturer |
|
| Power | 1300.00 W |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 24/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 250-400Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 315x200x66.5mm |
| Weight | 3.2 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODX-1300 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-1300 has a maximum output current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage. |
|
| Download datasheet |
ODX-1300 Industrial
| Manufacturer | Premium |
| Power | 1300.00 W |
| Package | Enclosed |
| No. of outputs | 1 |
ODX-1300 Industrial
| Manufacturer |
|
| Power | 1300.00 W |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 24/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 250-400Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 315x200x66.5mm |
| Weight | 3.2 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODX-1300 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-1300 has a maximum output current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage. |
|
| Download datasheet |
ODS-3000 Railway
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODS-3000 Railway
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 24/36/48/72/120/300Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 409x197.9x78.5mm |
| Weight | 6 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODS-3000 consists of single phase sine-wave DC/AC inverters with galvanic isolation between input and output. The ODS-3000 are equipped with a maximum average power protection as well as maximum output peak current protection. This protects the unit even when an output shortcircuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODS-3000 Industrial
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODS-3000 Industrial
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 24/36/48/72/120/300Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 409x197.9x78.5mm |
| Weight | 6 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODS-3000 consists of single phase sine-wave DC/AC inverters with galvanic isolation between input and output. The ODS-3000 are equipped with a maximum average power protection as well as maximum output peak current protection. This protects the unit even when an output shortcircuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODS-1500 Railway
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODS-1500 Railway
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 12/24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 385x150x68.5mm |
| Weight | 3.8 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODS-1500 consists of single phase sine-wave DC/AC inverters with galvanic isolation between input and output. The ODS-1500 are equipped with a maximum average power protection as well as maximum output peak current protection. This protects the unit even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODS-1500 Industrial
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODS-1500 Industrial
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 12/24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 385x150x68.5mm |
| Weight | 3.8 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODS-1500 consists of single phase sine-wave DC/AC inverters with galvanic isolation between input and output. The ODS-1500 are equipped with a maximum average power protection as well as maximum output peak current protection. This protects the unit even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges. |
|
| Download datasheet |
ODS-750 Railway
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODS-750 Railway
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 12/24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 130x270x50mm |
| Weight | 1.95 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODS-750 consists of sine-wave 120Vac or 230Vac output voltage DC-AC converters. The frequency can be set to 50Hz or 60 Hz, and input and output are galvanically isolated. The ODS-750 inverter is equipped with an input polarity protection by means of fuse. It also features maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input undervoltage, which protects the batteries from harmful discharges. |
|
| Download datasheet |
ODS-750 Industrial
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
ODS-750 Industrial
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 12/24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 130x270x50mm |
| Weight | 1.95 |
| Water-cooled option | No |
Features:
|
|
| Description: The ODS-750 consists of sine-wave 120Vac or 230Vac output voltage DC-AC converters. The frequency can be set to 50Hz or 60 Hz, and input and output are galvanically isolated. The ODS-750 inverter is equipped with an input polarity protection by means of fuse. It also features maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input undervoltage, which protects the batteries from harmful discharges. |
|
| Download datasheet |

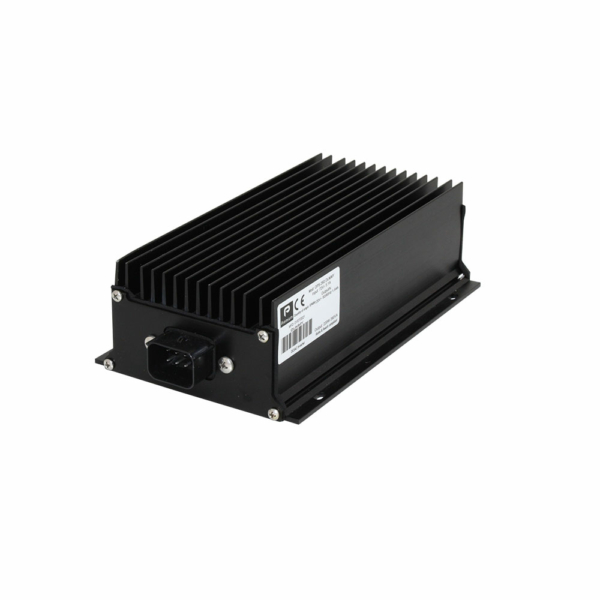

OPS-260 Railway
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
OPS-260 Railway
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 12/24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 67x249x135mm |
| Weight | 1.74 |
| Water-cooled option | No |
Features:
|
|
| Description: The OPS-260 consists of sine-wave 120Vac or 230Vac output voltage DC-AC converters. The frequency can be factory selected to 50Hz or 60 Hz, and input and output are galvanically isolated. The OPS-260 inverters consist of two cascaded converters, one DC-DC generating an intermediate output voltage from the input voltage. That intermediate voltage is inverted to supply the output voltage and frequency by means of a second DC/AC converter. The input is protected against reverse polarity by means of fuse and against under-voltage by unit shutdown. The output has protection of maximum average power and maximum peak current. The unit shutdowns when the operation curve limit is exceeded for more than one second. Every 2 seconds after shutdown, the unit tries to restart up to 3 times. If the overload persists, the unit remains shutdown until an input reconnection. |
|
| Download datasheet |
OPS-260 Industrial
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
OPS-260 Industrial
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 12/24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 67x249x135mm |
| Weight | 1.74 |
| Water-cooled option | No |
Features:
|
|
| Description: The OPS-260 consists of sine-wave 120Vac or 230Vac output voltage DC-AC converters. The frequency can be factory selected to 50Hz or 60 Hz, and input and output are galvanically isolated. The OPS-260 inverters consist of two cascaded converters, one DC-DC generating an intermediate output voltage from the input voltage. That intermediate voltage is inverted to supply the output voltage and frequency by means of a second DC/AC converter. The input is protected against reverse polarity by means of fuse and against under-voltage by unit shutdown. The output has protection of maximum average power and maximum peak current. The unit shutdowns when the operation curve limit is exceeded for more than one second. Every 2 seconds after shutdown, the unit tries to restart up to 3 times. If the overload persists, the unit remains shutdown until an input reconnection. |
|
| Download datasheet |
OCS-260 Railway
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
OCS-260 Railway
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Application | Railway Version |
| Input voltage | 12/24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 5 years |
| Dimensions | 100x220x40mm |
| Weight | 0.9 |
| Water-cooled option | No |
Features:
|
|
| Description: The OCS-260 consists of sine-wave 120Vac or 230Vac output voltage DC-AC converters. The frequency can be set to 50Hz or 60 Hz, and input and output are galvanically isolated. The OCS-260 inverters consist of two cascaded converters, one DC-DC generating an intermediate output voltage from the input voltage. That intermediate voltage is inverted to supply the output voltage and frequency by means of a second DC/AC converter. The input is protected against reverse polarity by means of fuse and against under-voltage by unit shutdown. The output has protection of maximum average power and maximum peak current. The unit shutdowns when the operation curve limit is exceeded for more than one second. Every 2 seconds after shutdown, the unit tries to restart up to 3 times. If the overload persists, the unit remains shutdown until an input reconnection. |
|
| Download datasheet |
OCS-260 Industrial
| Manufacturer | Premium |
| Package | Enclosed |
| No. of outputs | 1 |
OCS-260 Industrial
| Manufacturer |
|
| Power | |
| Package | Enclosed |
| No. of outputs | 1 |
| Input voltage | 12/24/36/48/72/110Vdc |
| Efficiency | 0.00 |
| Max output current | 0.00 |
| Output Vac | 120-230Vac |
| Inverter type | Sine wave |
| Electronic load input rating power | 0.00 |
| Warranty | 3 years |
| Dimensions | 100x220x40mm |
| Weight | 0.9 |
| Water-cooled option | No |
Features:
|
|
| Description: The OCS-260 consists of sine-wave 120Vac or 230Vac output voltage DC-AC converters. The frequency can be set to 50Hz or 60 Hz, and input and output are galvanically isolated. The OCS-260 inverters consist of two cascaded converters, one DC-DC generating an intermediate output voltage from the input voltage. That intermediate voltage is inverted to supply the output voltage and frequency by means of a second DC/AC converter. The input is protected against reverse polarity by means of fuse and against under-voltage by unit shutdown. The output has protection of maximum average power and maximum peak current. The unit shutdowns when the operation curve limit is exceeded for more than one second. Every 2 seconds after shutdown, the unit tries to restart up to 3 times. If the overload persists, the unit remains shutdown until an input reconnection. |
|
| Download datasheet |
