ODS-3000 Railway

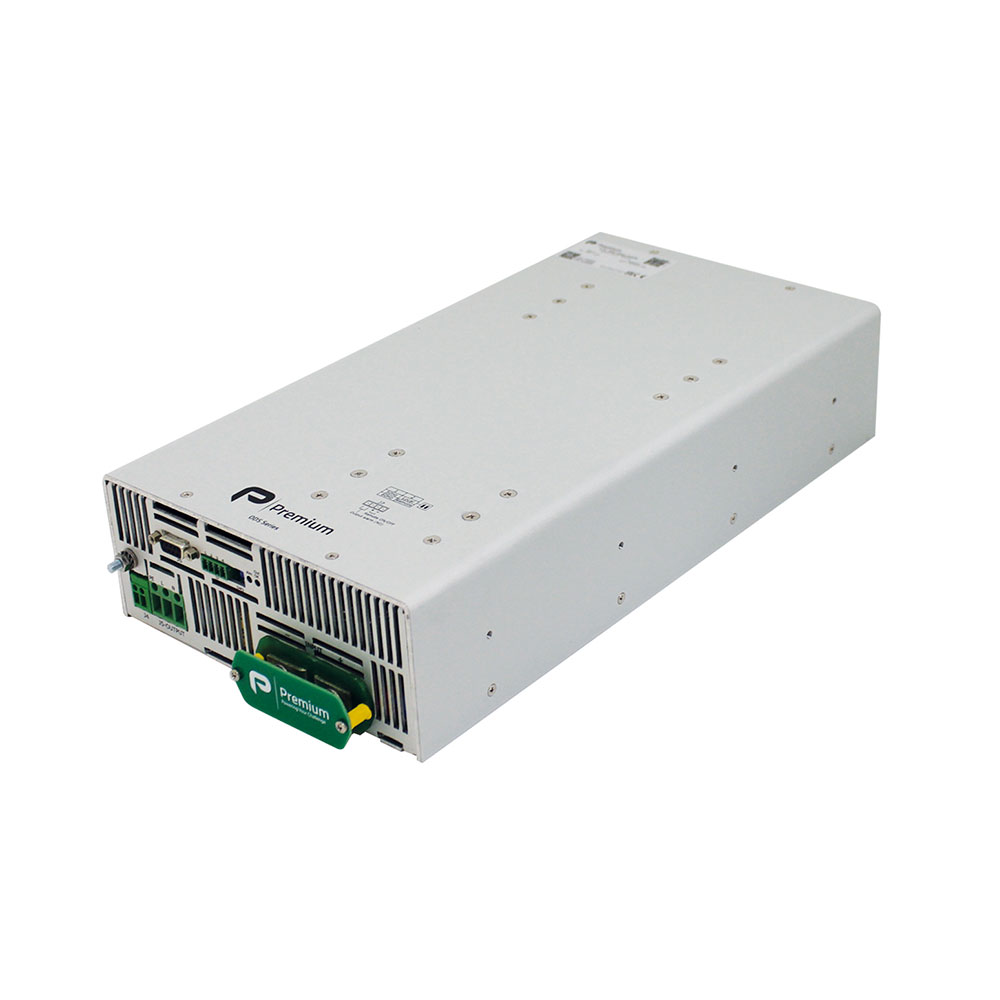

ODS-3000 Railway image
Manufacturer Premium logotype
Power
Package Enclosed
No. of outputs 1
Application Railway Version
Input voltage 24/36/48/72/120/300Vdc
Efficiency 0.00
Max output current 0.00
Output Vac 120-230Vac
Inverter type Sine wave
Electronic load input rating power 0.00
Warranty 5 years
Dimensions 409x197.9x78.5mm
Weight 6
Water-cooled option No

Features:

  • Sine wave output voltage
  • Selectable output frequency: 50/60Hz
  • Adjustable output voltage
  • High input-output isolation 3000Vrms
  • Remote inhibit
  • Remote control via RS232
  • Alarm by isolated relay contacts
  • Remote off opto-coupled
  • Optional railway version EN50155
  • Fire and smoke: EN45545-2 approved
  • Efficiency up to 91%

Description:

The ODS-3000 consists of single phase sine-wave DC/AC inverters with galvanic isolation between input and output. The ODS-3000 are equipped with a maximum average power protection as well as maximum output peak current protection. This protects the unit even when an output shortcircuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges.
