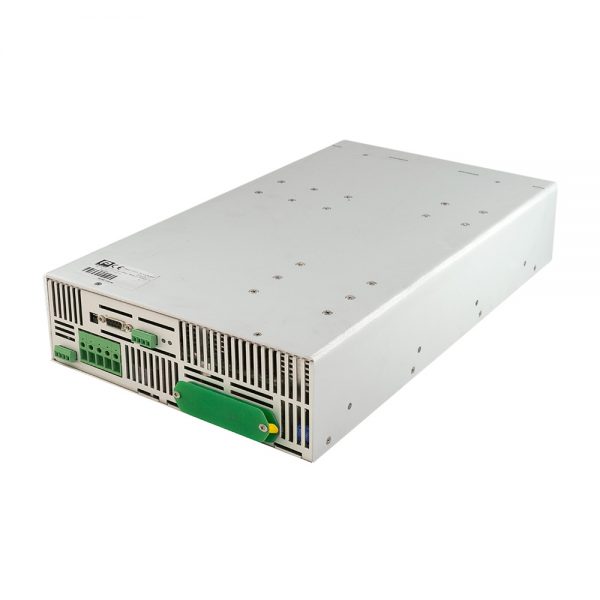

ODX-4500 Railway

Manufacturer
Power
Package	Enclosed
No. of outputs	1
Application	Railway Version
Input voltage	72/100/110/571Vdc
Efficiency	0.00
Max output current	0.00
Output Vac	400Vac
Inverter type	Sine wave
Electronic load input rating power	0.00
Warranty	5 years
Dimensions	408x224x82.5mm
Weight	7.24
Water-cooled option	No

Features:

Sine wave output voltage
Suitable for motors control
Selectable output frequency: 50/60Hz
Adjustable output voltage
High input-output isolation 3000Vrms
Remote inhibit
Configurable input: Reverse or Mid power
Remote control via RS232
Alarms by isolated relay contacts
Remote off opto-coupled
Optional railway version EN50155
Fire and smoke: EN45545-2 approved

Description:

The ODX-4500 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-4500 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges.
