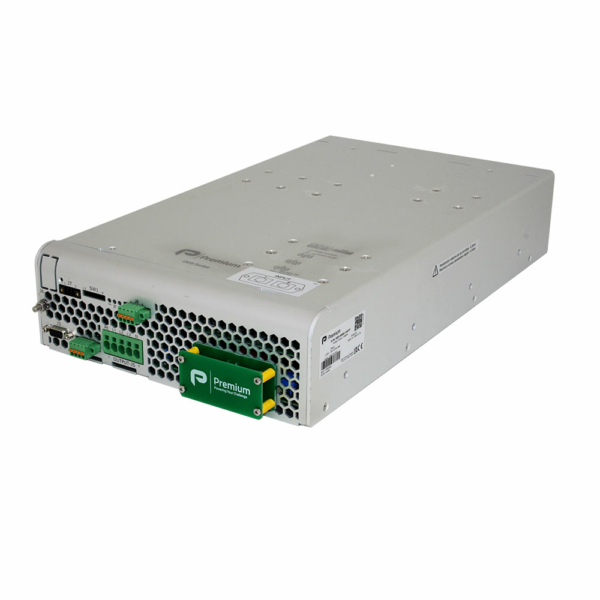

ODX-6000 Railway

Manufacturer
Power
Package	Enclosed
No. of outputs	1
Application	Railway Version
Input voltage	24/48/72/110Vdc
Efficiency	0.00
Max output current	0.00
Output Vac	400Vac
Inverter type	Sine wave
Electronic load input rating power	0.00
Warranty	5 years
Dimensions	455.44x260.4x84.8mm
Weight	8.95
Water-cooled option	No

Features:

Sine wave output voltage
Suitable for motors control
Adjustable output frequency
Adjustable output voltage
High input-output isolation 3000Vrms
Remote off opto-coupled
Alarm by isolated relay contacts
Configurable input: Reverse or Mid power
Remote control via RS232
CAN BUS (optional)
Parallelable output (optional)
Railway version EN50155 (optional)
Fire and smoke: EN45545-2 approved

Description:

The ODX-6000 consists of three phase sine-wave DC-AC inverters with galvanic isolation between input and output. The ODX-6000 is equipped with a maximum average power protection as well as maximum output peak current protection. This protects the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges.
