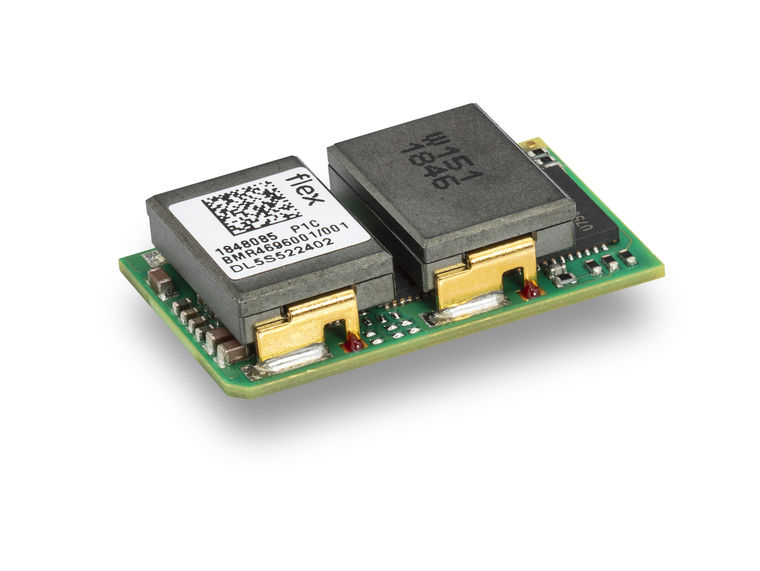

BMR4696001/001

Features:

• Key Features
• Small Package 25.4 x 14.5 x 5.8 mm (1.00 x 0.57 x 0.23 in)
• Configurable for either dual or single output
• 0.6 V- 5 V output voltage range
• Maximum output current, 25 A per output for dual output or 50 A for single output
• High efficiency, typ. 94.3% at 12Vin, 5Vout full load
• Current sharing up to 4 modules, 200 A
• Control loop with fast load transient response
• Configuration and monitoring via PMBus
• Synchronization and phase spreading
• Meets safety requirements according to IEC/EN/UL 62368-1
• MTBF 46.4 Mh

Description:

The BMR469 series is a dual output digital non-isolated DC/DC PoL converter #These converters can deliver up to 2×40A (or 1×80A in a single output configuration) and have a high efficiency up to 92.6% typical at 12Vin / 5Vout / 50% load#The BMR469 series has MTBF of up to 18.5 million hours.#Standard features for this model include configuration, control and monitoring via PMBus®, user configurable feedback loop compensation, frequency synchronization, phase spreading/interleaving, voltage tracking and voltage margining.
