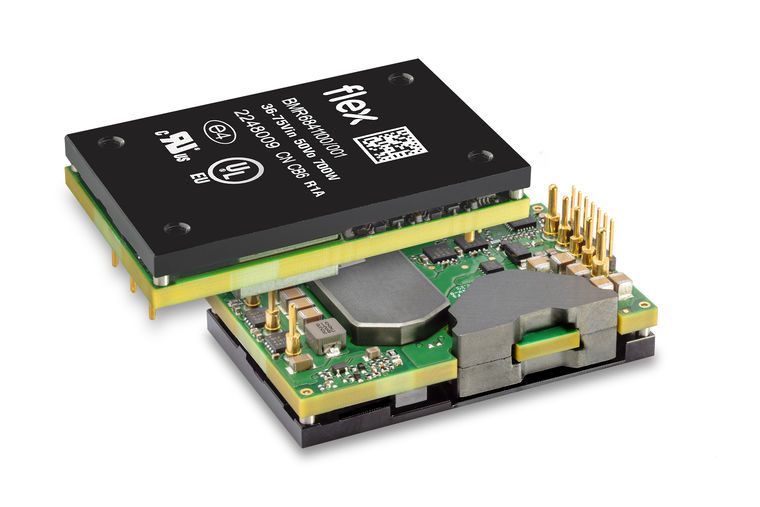

BMR684100/001

Manufacturer
Power	700.00 W
Package	PCB-mounted
Input voltage	36-75 V
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	58.4×36.8×12.7 mm
Water-cooled option	No

Features:

Key features
High efficiency with 96.0%
1500Vdc input to output isolation
Monotonic start-up
Input under voltage protection
Output over voltage protection
Output short-circuit protection
Over temperature protection
Remote control
Remote sense function

Description:

The BMR684 is a high-density digital solution DC/DC converter for telecom application#The impressive performance of this converter includes an efficiency reaching 96.0% at 48 Vin at full load and the baseplate operating temperature up to 100°C#The BMR684 is a single output regulated DC/DC converter with standard quarter brick format. It delivers up to 14A output current with 50V output voltage. #This converter is designed for through-hole mounting using wave solder process
