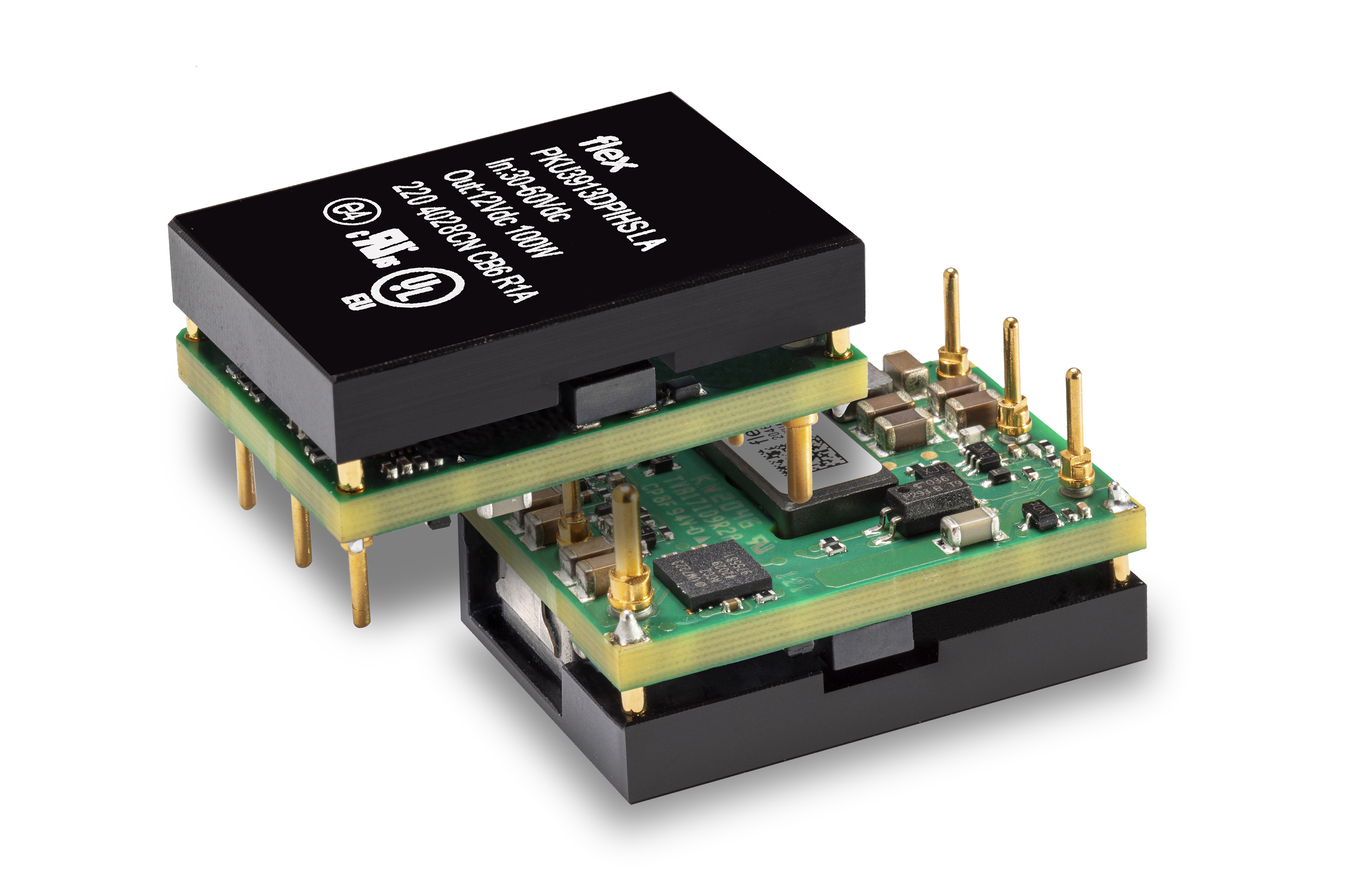

PKU3913D

Features:

• Key Features
• Industry standard low profile 1/16 brick 33.02 x 22.86 x 11.30 mm (1.3 x 0.9 x 0.44 in)
• High efficiency, typical 93.8% at 48Vin, full load
• 2250 Vdc input to output isolation
• Pre-bias start up
• Optional Baseplate
• Meets safety requirements according to IEC/EN/UL 62368-1
• MTBF 13.88 Million hours

Description:

The PKU-D series is an analog DC/DC converter in a sixteenth brick format. They offer a Vout range between 3.3-12 V and wide Vin ranges of 36-75, 36-60 and 30-60 V, typically needed in telecom and datacom applications.#These converters can deliver up to 260W and have a high efficiency up to 96.1% typical at 48Vin / 50% load.#The PKU-D series can operate over a temperature range from -40°C up to +125°C and offers an MTBF of up to 12.9 million hours.#Standard features for this model include pre-biased start-up as well as remote control. The converters are protected against output over-voltage, output over-current and over-temperature conditions.
