PLD125-EVDC02- 15

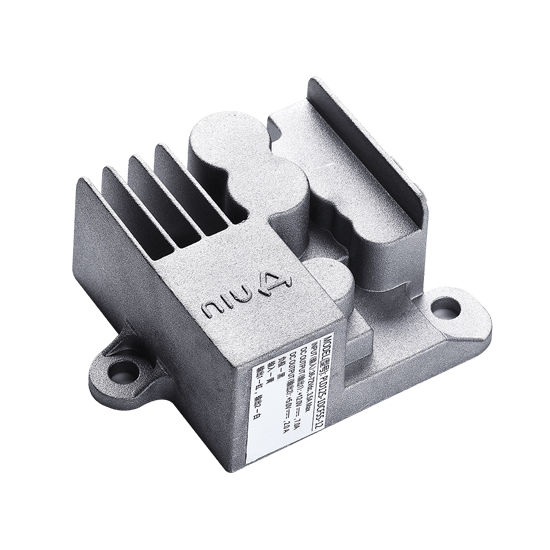

PLD125-EVDC02- 15 image
Manufacturer Powerland logotype
Power 130.00 W
Input voltage 36-90Vdc
Efficiency 0.00
Available output range (V) 0.00
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 102x82x41mm
Weight 0.683
Water-cooled option No

Features:

  • Wide Input Voltage
  • Non-isolated Input / Output Design
  • Ultra High Efficiency
  • High Reliability
  • Natural Cooling
  • Operating Temperate: -20~50℃
  • IP65 Ingress Grade

Description:

Powerland‘s “Iron” series 84~130W non- isolated DC/DC converters are designed with compact size, low cost, high efficiency and high reliability. Featured with a fully sealed mechanical structure and 12V/10A, 5V/2A dual output, this series offers solid and safe power conversions on electrical bike, electrical motorcycle and other DC/DC applications.
