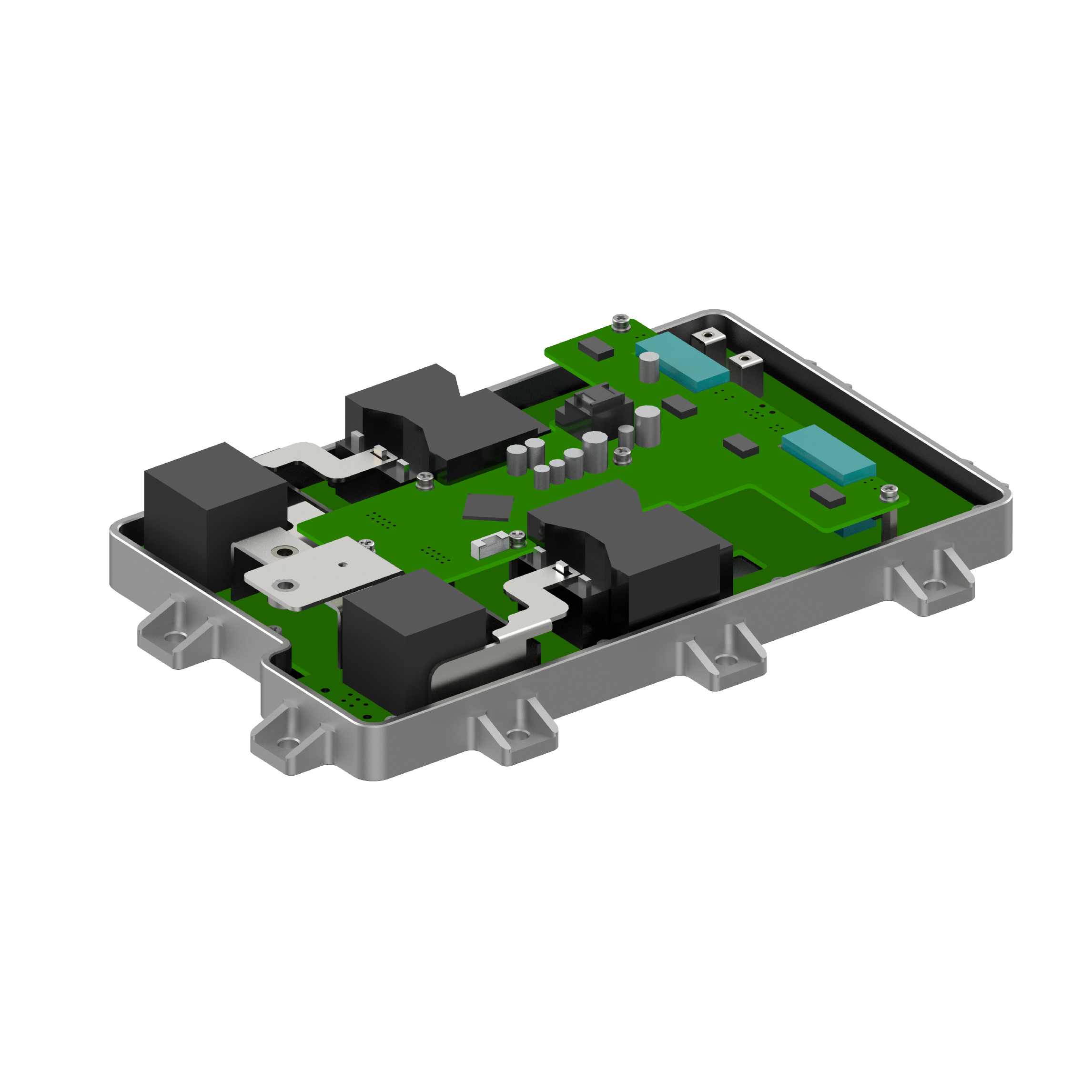

PLD4500-BDGA400-48

Manufacturer
Power	4500.00 W
Input voltage	300-450V
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	268×188×52mm
Weight	3.5
Water-cooled option	No

Features:

Isolated bidirectional DC/DC conversion in current mode/voltage mode
300~450 Vdc HV range, 28~58.4 Vdc LV range
HV → LV Power: 4500W typical, 4500W full range(Down-conversion)
HV ← LV Power: 4500W typical, 4500W full range(Up-conversion)
Efficiency: 97.5% max; full range 93% min
-40~45 ℃ operating temperature range
Comprehensive monitoring and protection based on CAN bus communication

Description:

Powerland's 2500W isolated bi-directional DC/DC converter allows bi-directional power transfer between 300-450Vdc high voltage (HV) and 28-58.4Vdc low voltage (LV). The converter supports current control and can switch between boost and buck operating states via CAN communication.
