PXC-M03-S

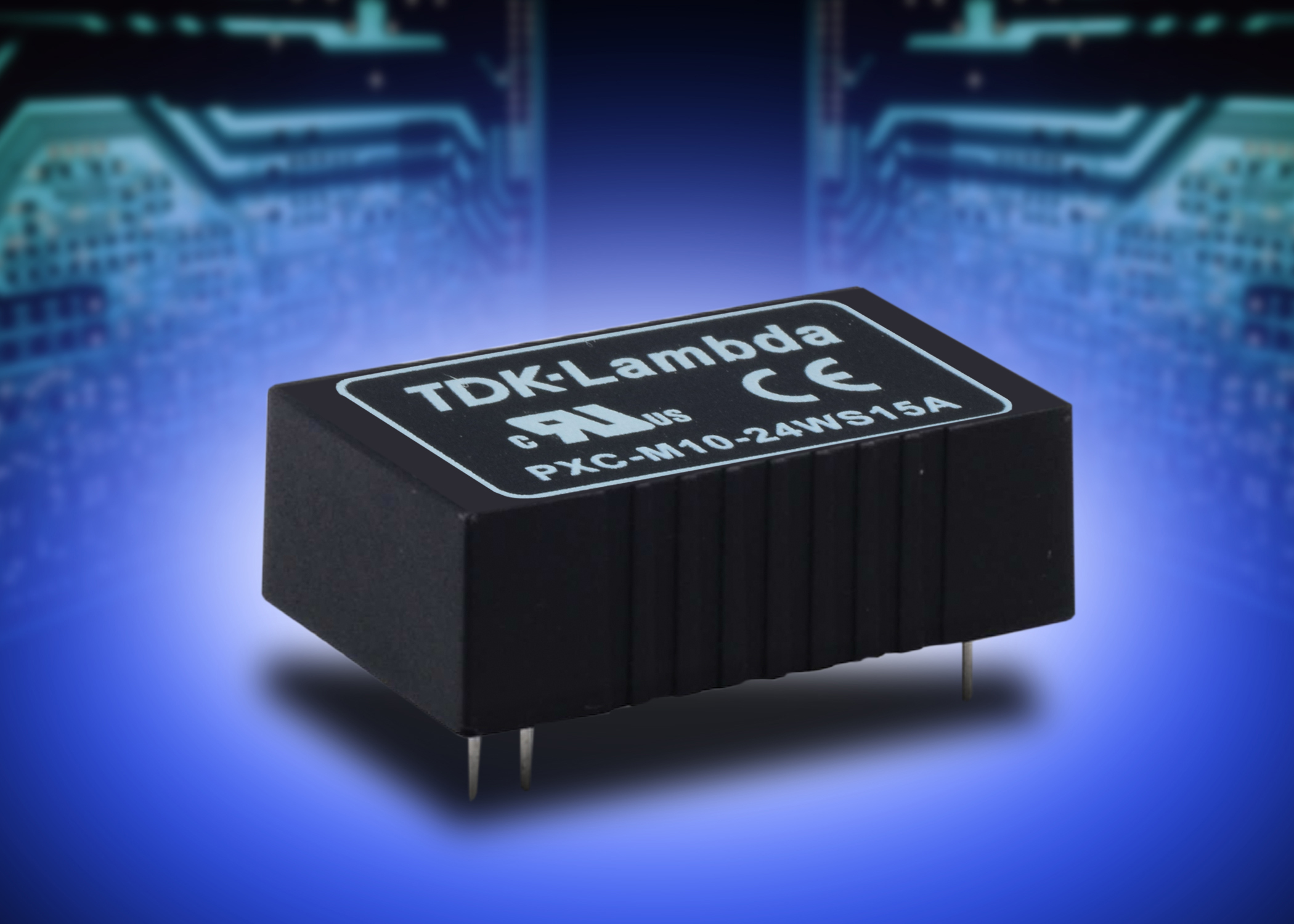

PXC-M03-S image
Manufacturer TDK-Lambda logotype
Power 3.00 W
Package PCB-mounted
No. of outputs 1
Input voltage 9-36/18-75Vdc
Efficiency 0.00
Max output current 0.00
Electronic load input rating power 0.00
Warranty 5 years
Dimensions 31.8 x 20.3 x 10.2
Weight 0,014
Water-cooled option No

Features:

  • 60601-1 approval
  • I/O isolation 5kVAC, 2MOPP
  • 0.25μA low patient leakage
  • 4:1 Wide input range

Description:

Medically certified to the IEC 60601-1 standards, the PXC-M is housed in the industry standard DIP-24 package. Featuring an input to output isolation voltage of 5,000Vac and accepting either a 9 to 36Vdc or 18 to 75Vdc input, the PXC-M series is available with output voltages of 3.3, 5, 12, 15, 24, +/- 5, +/- 12 and +/- 15Vdc. Operation from 12V and 24V, or 24V and 48V nominal inputs reduces inventory carrying costs and improves part availability.
