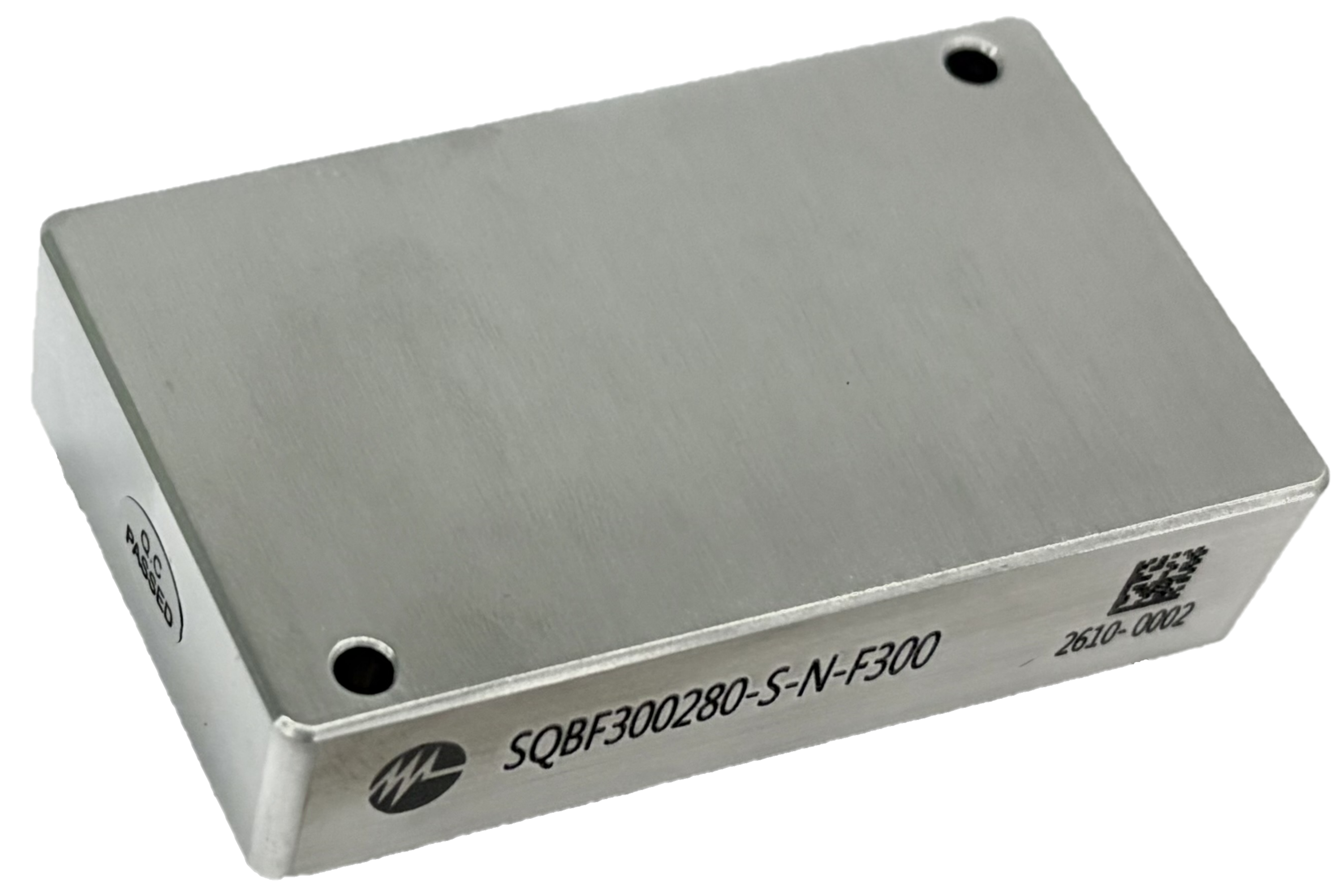

SQBF Series
| Manufacturer |
|
| Power | 300.00 W |
| Package | PCB mounted |
| No. of outputs | 1 |
| Input voltage | 18-425VDC |
| Efficiency | 93.00 |
| Available output range (V) | 12-48VDC |
| Max output current | 0.00 |
| Electronic load input rating power | 0.00 |
| Warranty | 3 Years |
| Dimensions | 60.96x37.2x12.7mm |
| Weight | 0.075 |
| Water-cooled option | No |
Features:
|
Description:PowerGood DC DC CONVERTER - Supreme series –Quarter Brick Full Size converter is composed of Isolated, board-mountable, fixed switching frequency DC-DC converters that use synchronous rectification to achieve extremely high-power conversion efficiency. These DC-DC converter modules use advanced power processing, control, and packaging technologies to enhance the performance, flexibility, reliability, and cost effectiveness of mature power components. |
| Download datasheet |
