FSP3000-20FE

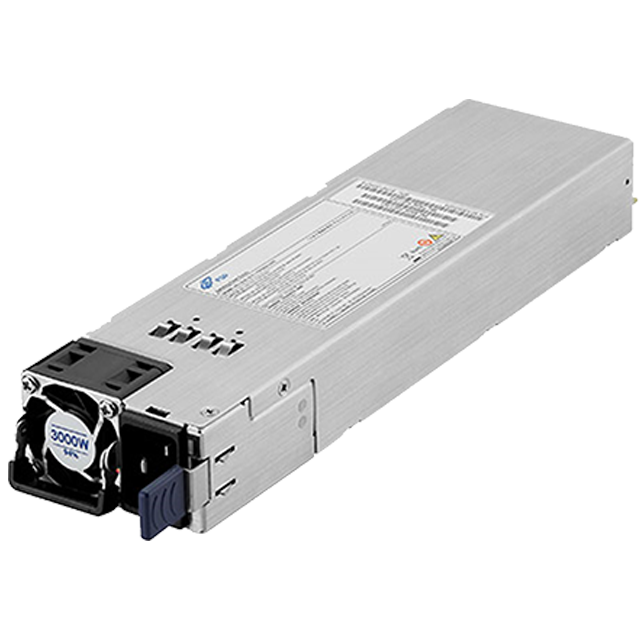

FSP3000-20FE image
Manufacturer FSP logotype
Power 3000.00 W
Package 2U Redundant
Input voltage 90-264 VAC
Efficiency 0.00
Available output range (V) 0-2000
Max output current 0.00
Electronic load input rating power 0.00
Dimensions 265x73.5x40mm
Water-cooled option No

Features:

  • 3000W Output, +54V, +12Vsb
  • 80PLUS Platinum
  • Working temperature: 0 to 55°C
  • Cold Redundant; Hot Swapping
  • Support OCP, OTP, OVP and OPP circuit protection
  • Operation: sea level to 5000m
  • PMBus 1.2

Description:

FSP3000-20FE is a redundant power supply module based on CRPS 2.2 standard. This power supply offers the total capacity up to 3000 Watts, and provides PMbus features, which makes it to be ablec to communicate with motherboard. In addition, the power supply is ideally the best choice for datacenter, 5G,AI, workstation, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.
