EDT-150

Manufacturer
Power	150.00 W
Package	Chassis mount
No. of outputs	1
Input voltage	230Vac
Efficiency	0.00
Max output current	0.00
Output Vac	12/48V
Electronic load input rating power	0.00
Warranty	3 years
Dimensions	247x115x115mm
Weight	1.65
Water-cooled option	No

Features:

Uninterruptible power supply for 12V lead-acid batteries
Three-state battery charging
Configurable load parameters
Two independent +48V outputs
Alarm signaling via 4 potential-free relays
Ethernet port for remote configuration and monitoring.
Integrated web server
Battery test without heat dissipation
Battery connection via solid-state relay

Description:

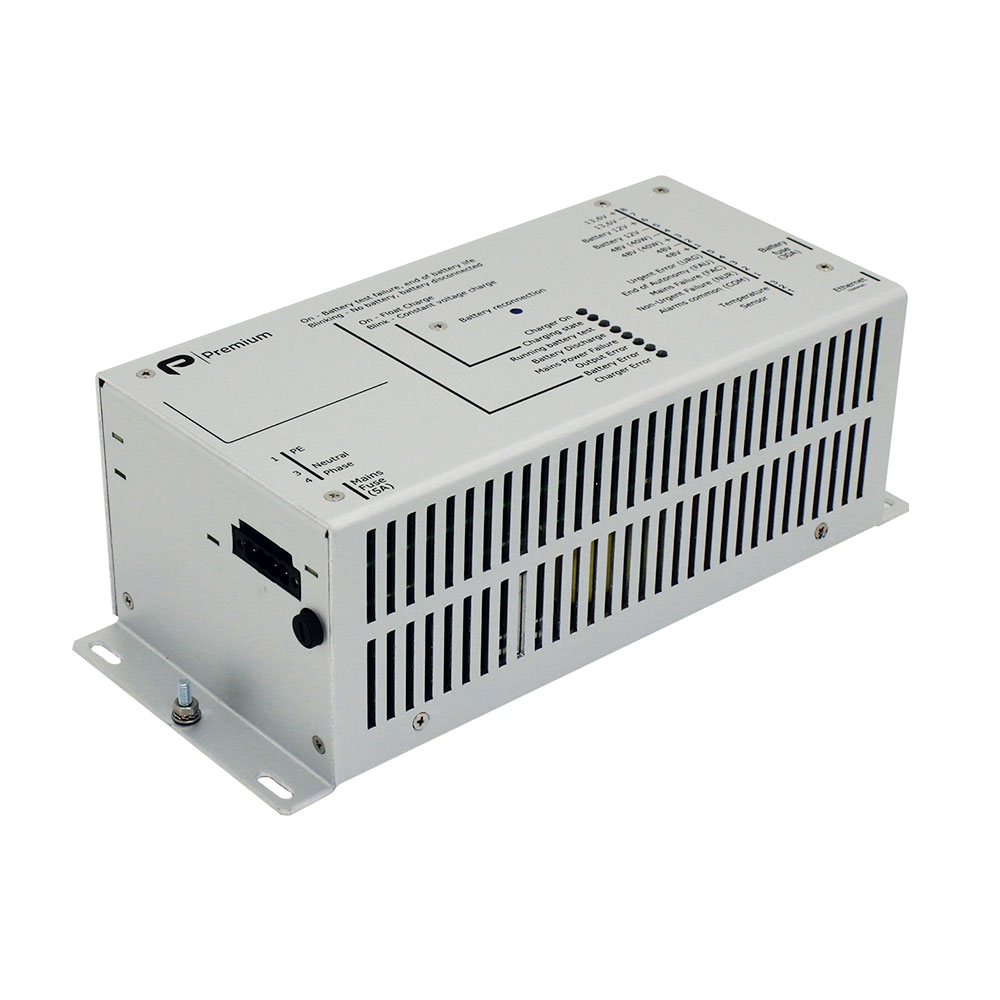

The equipment consists of a rectifier-charger that, in case of having input AC voltage, provides a regulated output voltage and charges the battery in a controlled way. The equipment comprises a switched power supply and a three-state battery charger. It also incorporates alarm circuits that signal failures in the input voltage, in the battery or in the charger. Alarm outputs are potential-free relay contacts.
