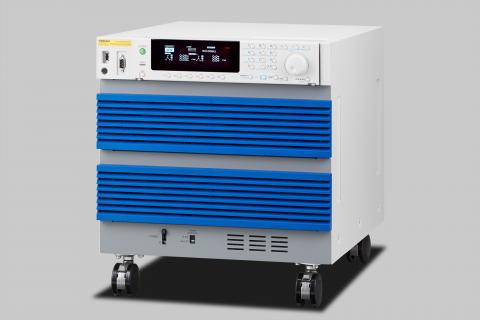

PCR12000WE2R

Manufacturer
Power	12000.00 W
Package	19" Rack/9U
Notes	Reneration function - max. regenerated power - 12kVA
Input voltage	200-240Vac (3-phase line voltage - 3-wire)
Efficiency	85.00
Available output range (V)	1-155Vac/ 2-310Vac/ 1.4-219Vdc/2.8V-438
Output current (A)	Single-phase o/p: 120A/ 60A - Single-phase 3-wire / 3-phase o/p: 40A/ 20
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	430 x 389(475) x 550 (620) mm
Weight	66
Water-cooled option	No
Manual	Link

Features:

Compact Size!
Up to 144 kVA with Parallel Operation
Extremely Power Dense 36 kVA Chassis
Low Ripple Noise
Output Frequency up to 5 kHZ
DC Output 100% of Rated Power
LAN (LXI Compliant)/USB/RS232C standard interface
Power Line Error Simulation

Description:

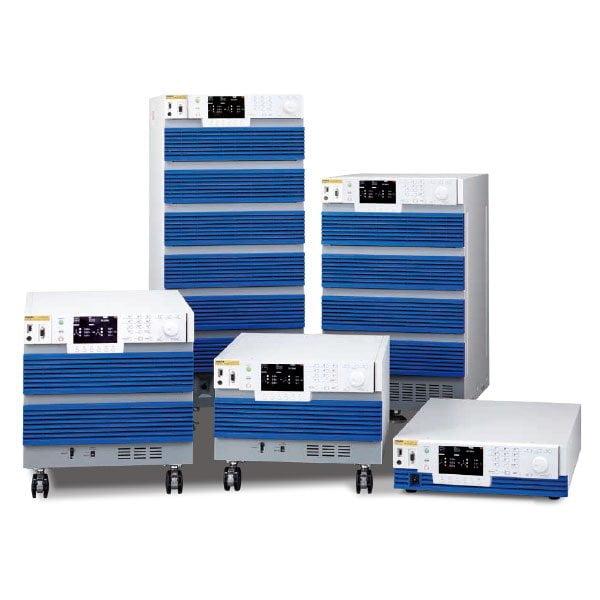

The PCR-WE/WE2 is a series of multifunctional switching AC power supplies that combines accurate, high-power output with an ultra-compact design. The 15 model line-up ranges from 1 kVA to 36 kVA AC/DC with single & 3 phase variable output from 6 kVA and up.

Output frequency up to 5 kHz is also available with all models, which is critical for AC applications in avionic industries.
