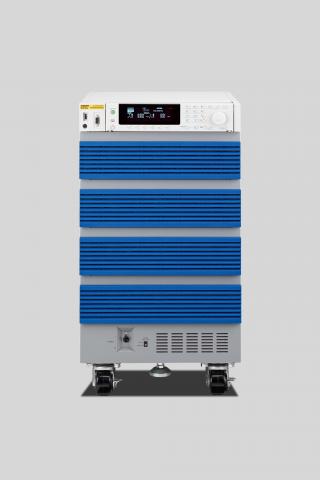

PCR18000WE2

Manufacturer
Power	18000.00 W
Package	16U rack mount
Input voltage	380-480 Vac (3-phase line voltage - 4-wire)
Efficiency	85.00
Available output range (V)	1-155Vac/ 2-310Vac/ 1.4-219Vdc/ 2.8V-438
Output current (A)	Single-phase o/p: 180A/ 90A - Single-phase 3-wire / 3-phase o/p: 60A/ 30
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	430 x 690(785) x 550 (660) mm
Weight	120
Water-cooled option	No
Manual	Link

Features:

Compact Size!
Up to 144 kVA with Parallel Operation
Extremely Power Dense 36 kVA Chassis
Low Ripple Noise
Output Frequency up to 5 kHZ
DC Output 100% of Rated Power
LAN (LXI Compliant)/USB/RS232C standard interface
Power Line Error Simulation

Description:

The PCR-WE/WE2 is a series of multifunctional switching AC power supplies that combines accurate, high-power output with an ultra-compact design. The 15 model line-up ranges from 1 kVA to 36 kVA AC/DC with single & 3 phase variable output from 6 kVA and up.

Output frequency up to 5 kHz is also available with all models, which is critical for AC applications in avionic industries.
