Hipot testers

Kikusui offers the following electrical safety testers:

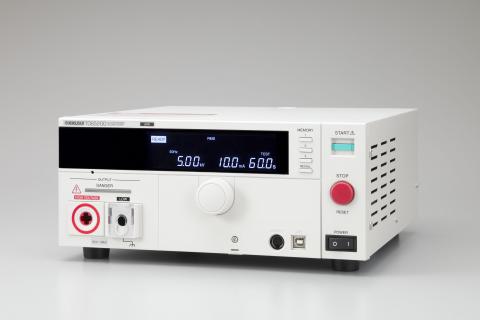

TOS5200

Manufacturer
Power VA	500.00 VA
Package	Bench mount
No. of outputs	1
Notes	Hipot tester
Input voltage	100-240Vac
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Water-cooled option	No
Manual	Link
Features: Rise/Fall Time control function of the applied voltage - Equipped with a Rise time/Fall time control function Highly stable output - Newly developed, high-efficiency PWM switching amplifier High Precision High Resolution - ± 1.5 % of reading Reducing the tact time World-wide input voltage
Description: TOS5200 is designed for AC Hipot Test with 500 VA capacity and 200 mA short circuit current output capability. Equipped with the PWM amplifier, the TOS5200 can provide a stable & reliable output without being affected by ACpower line. Therefore, it is a perfect solution for electronic equipment or devices complied to IEC, EN, UL, VDE andJIS etc. requirement. As TOS5200 covers most of features of our upper class model for AC Hipot Test, it achieves thesuperb cost / performance ratio for those who need 200 VA or 500 VA capacity, or both. Also, as it equips the Interlockfunction together with other safety features, operator can carry out the test with higher current value in safe.
