HV Power Supplies

Divisoft sells High-voltage power supplies from the French manufacturer TECHNIX and ALE Systems (TDK-Lambda) which manufactures capacitor chargers and high-voltage products in the USA.

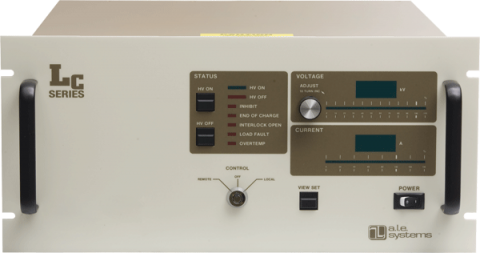

Switchmode capacitor charging supplies

TDK-Lambda Americas' ALE Systems division is the oldest and most experienced designer and manufacturer of high voltage capacitor charging power supplies operating today. The wide range of output voltages (1 - 65kV) and power levels (500J/sec to 30kJ/sec) available from a single supplier is unique in the industry. ALE Capacitor charging power supplies are specifically designed to efficiently charge capacitive loads to high voltages with excellent pulse to pulse repeatability at very high repetition rates.

Switchmode high voltage DC

Although the ALE series of power supplies have been designed to operate as constant current capacitor charging supplies, they can be used in continuous DC applications with the addition of an external filter capacitor. When used in DC applications the ALE series can often deliver more average power - see the product details for the actual rating.

TECHNIX offers high quality HV DC power supplies manufactured in France. They also offer customized solutions adapted to your requirements.

HV CAPACITOR CHARGER (CCPS) CCR up to 150kV Power to 20kJ/s

Manufacturer	Technix
Package	19" Rack
No. of outputs	1

Manufacturer
Power
Package	19" Rack
No. of outputs	1
Input voltage	400VAC
Efficiency	0.00
Available output range (V)	0-150kVDC
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	311x483x600mm
Water-cooled option	No
Features: Pulsed applications Capacitor Charging Research and Development Test Equipment Particle Accelerators Nuclear Fusion Flash lamps Marx Generator Output Voltage : 80kV to 150kV Charging power: 750J/s to 20kJ/s Polarity: Positive or Negative Operation frequency : <10Hz, up to 3kHz (option) Reproducibility: <0.1% Voltage holding: <0.1% p-p of full voltage Remote interface : 0-10V analog
Description: CCR series are Capacitor Chargers designed to Capacitor Chargers with offer optimal performance. They provide high reliability without any special maintenance

Manufacturer	Heinzinger
Power	30.00 W
Package	19" Rack
No. of outputs	1

Manufacturer
Power	60.00 W
Package	19" Rack
No. of outputs	1
Input voltage	231 V ±10 %
Efficiency	0.00
Available output range (V)	0-60000VDC
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	3U
Water-cooled option	No
Features: Output voltages up to 60,000 V Output power up to 30 and 60 W Output currents up to 600 mA Input voltage 24 V DC 19“ cartridge, 3U Low ripple Continuous short circuit proof Automatic transition from voltage to current source mode Remote controllable and extandable via integrated analog interface, for vol- tage and current setup as well as acknowledgement

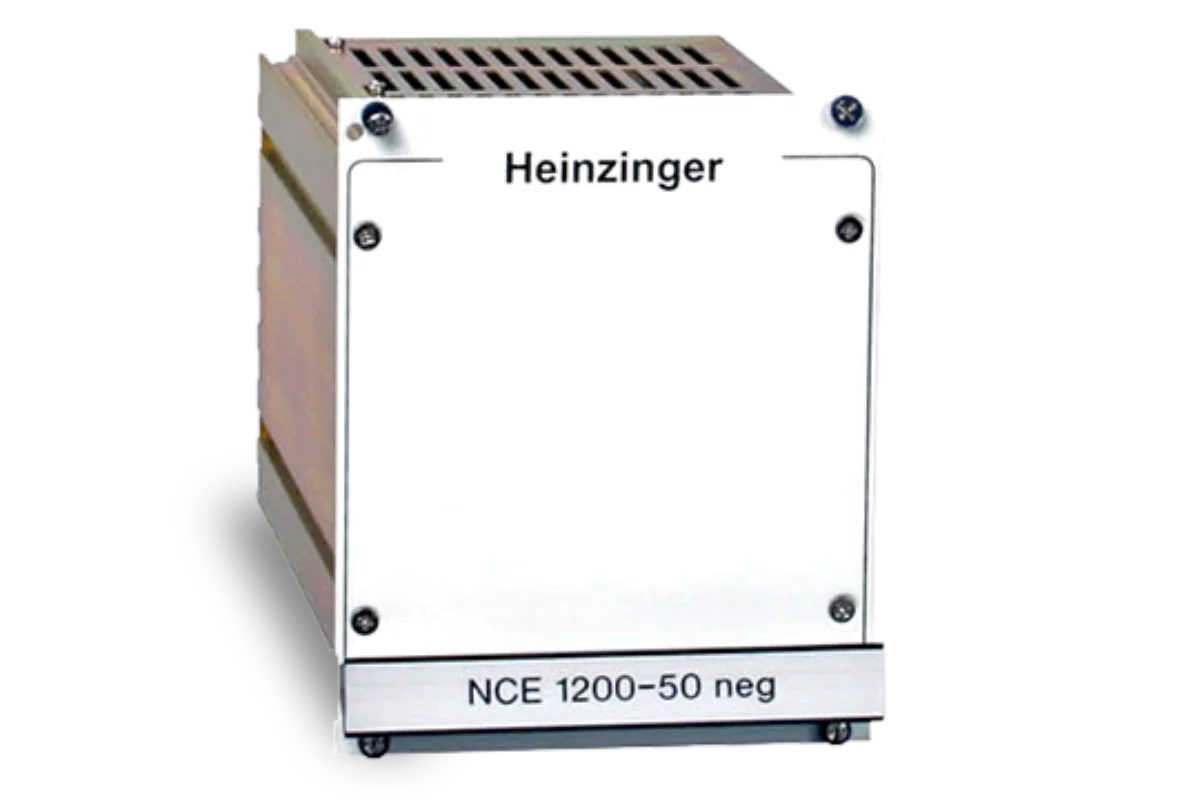

Description: The Heinzinger NCE high voltage cassettes provide high voltage of up to 60,000 Volts as a primary switched mode power supply. depending on the type and design, in a current range between 1 and 600 mA. These precise HV power supplies are designed as 19“ cassette units and can be controlled via a 0...10 V analog interface. Thanks to their compact dimensions and robust design, the NCE series high voltage modules are ideal for applications requiring a reliable high voltage supply up to 60 kV. The various control and readout options via analog interface allow easy adaptation to the specific application and are often used as reliable HV sources in systems and machines. Heinzinger NCE modules are available in different voltage ranges as well as in different power ratings of 30 and 60 Watts and can be supplied with positive or negative polarity. For units with more than 10 kV, the high voltage part is sealed to ensure the best possible long-term stability and compact dimensions. The units are built in robust 19“ cassettes, depending on power and output voltage between 14 and 28HP width at 3U.

Manufacturer
Power	300.00 W
Package	19" Rack
No. of outputs	1
Input voltage	255VAC
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	133x483x480mm
Water-cooled option	No
Features: Pulsed applications Research and Development Test equipment Particle Accelerators Beams (electron-ion) Tubes Output voltage: 20kV to 150kV Output power: 300W to 2000W Polarity: positive-negative-reversible Rise-time (10-90%): <300ms Ripple+Noise: 0.1% RMS of max output voltage Remote interface: 0-10V analog
Description: SR serie is designed to offer optimal performance in a compact design. Dry isolated, SR Power Supplies from 20kV to 150kV provide high reliability without special maintenance.

Manufacturer	ALE (TDK-Lambda)
Power	500.00 W
Package	OEM style
No. of outputs	1

Manufacturer
Power	600.00 W
Package	19" Rack
No. of outputs	1
Input voltage	255VAC
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	133x483x480mm
Water-cooled option	No
Features: Pulsed applications Research and Development Test equipment Particle Accelerators Beams (electron-ion) Tubes Output voltage: 20kV to 150kV Output power: 300W to 2000W Polarity: positive-negative-reversible Rise-time (10-90%): <300ms Ripple+Noise: 0.1% RMS of max output voltage Remote interface: 0-10V analog
Description: SR serie is designed to offer optimal performance in a compact design. Dry isolated, SR Power Supplies from 20kV to 150kV provide high reliability without special maintenance.

Manufacturer
Power	1000.00 W
Package	OEM style
No. of outputs	1
Input voltage	110/230Vac single phase
Efficiency	0.00
Max output current	0.00
Average charging rate	1000J/s
Electronic load input rating power	0.00
Water-cooled option	No
Attachments	Link

Manufacturer
Power	1200.00 W
Package	19" Rack
No. of outputs	1
Input voltage	255VAC
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	133x483x480mm
Water-cooled option	No
Features: Pulsed applications Research and Development Test equipment Particle Accelerators Beams (electron-ion) Tubes Output voltage: 20kV to 150kV Output power: 300W to 2000W Polarity: positive-negative-reversible Rise-time (10-90%): <300ms Ripple+Noise: 0.1% RMS of max output voltage Remote interface: 0-10V analog
Description: SR serie is designed to offer optimal performance in a compact design. Dry isolated, SR Power Supplies from 20kV to 150kV provide high reliability without special maintenance.

Manufacturer
Power	1500.00 W
Package	OEM style
No. of outputs	1
Input voltage	180-254Vac single phase
Efficiency	0.00
Max output current	0.00
Average charging rate	1500kJ/s
Electronic load input rating power	0.00
Water-cooled option	No
Attachments	Link

Manufacturer
Power	2000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	231 V ±10 %
Efficiency	0.00
Available output range (V)	300000V
Max output current	0.00
Electronic load input rating power	0.00
Water-cooled option	No
Features: Low residual ripple and excellent long-term stability Output voltage up to 60,000 V Continous short circuit proof Operation is possible as voltage or current source Suitable for resistive, inductive and capacitive loads Power supplies >10 k with sealed HV unit therefore have compact dimensions and longterm stability

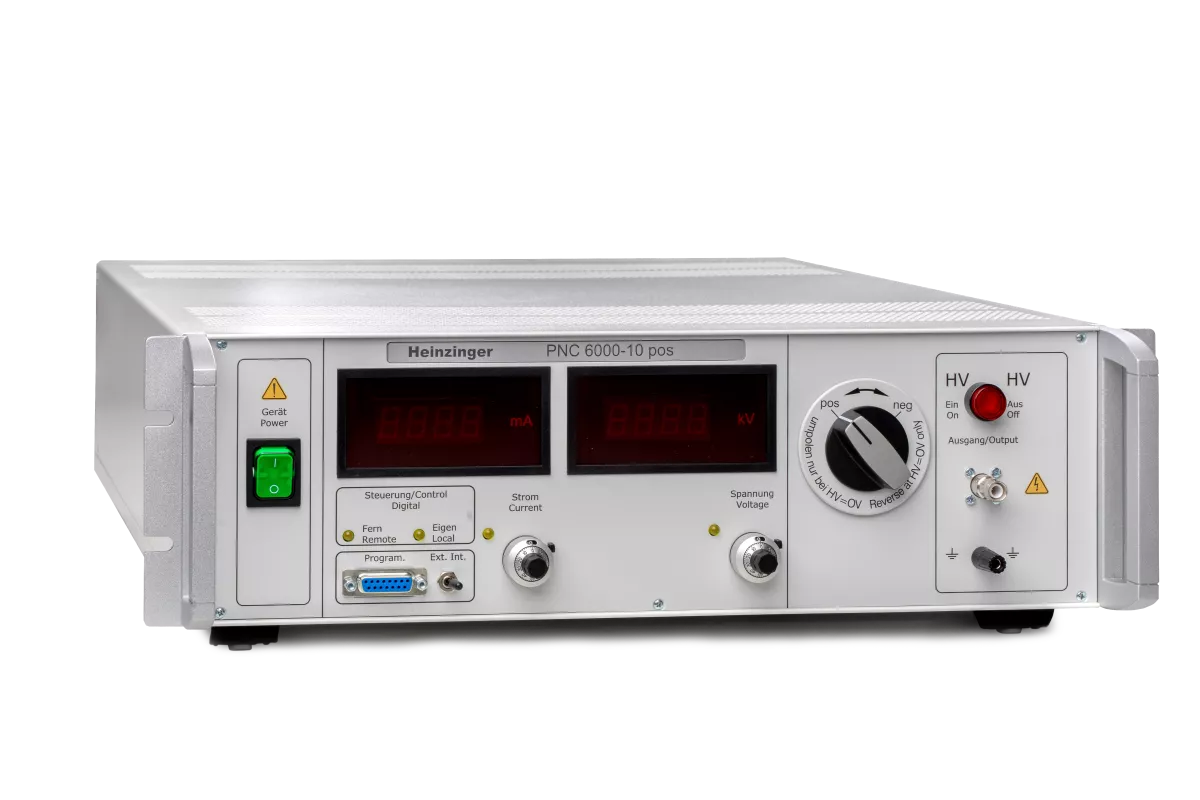

Description: Precision high voltage power supplies of the Heinzinger PNC3p series have the same features as the PNC series, but offer higher power ratings up to 6,000 Watts. They operate as primary switchedmode power supplies and provide a precisely regulated DC voltage with lowest ripple and best long-term stability. The units meet the same high requirements, but allow, due to the higher power, other voltage and current combinations. The PNC3p high voltage power supplies are used, similar to the standard PNC series power supplies, where reliable high voltage power supplies are required that provide exceptional long term stability. The advantage of the PNC3p in comparison to the standard PNC lies in their ability to provide higher power to meet more demanding requirements. This advantage can be used to increase production speed or speed up various processes.

Manufacturer
Power	3000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	187-253V
Efficiency	0.00
Available output range (V)	20000V
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	2U
Weight	12.5
Water-cooled option	No
Features: Voltage: up to 20 kV DC Power: 500 W, 2 kW, 3 kW Current: up to 2 A Polarity: electrical reversible, floating Full digital regulation Wide range AC input, singlephase Ethernet and RS232 on board Usable as 19“ rack-moun or benchtop device with integrated adapter
Description: The high voltage power supplies of the EVO series offer fast control at high precision. They are particularly comfortable to operate. Their compact build needs only 2U, which is extraordinary for their power density of 2 kW and 3 kW. A microcontroller, combined with an FPGA (Field Programmable Gate Array) permits particularly precise control. This makes complete and digital control of the EVO power supplies possible. FPGAs are used in high voltage power supplies since they permit quick signal processing and flexible adaptation to various load requirements. The units are characterized by high performance as well as fast and precise control. The high voltage output can be reversed remotely and supplies either a positive or negative high voltage at the output. The EVO series is also available with a floating output to enable flexible and secure integration into existing setups, that require a potential-free HV-supply. Our customers use the EVO e.g. for HV tests in the production and verification of semiconductors, for end-of-line tests and in the research and development environment.

Manufacturer
Power	3500.00 W
Package	19" Rack
No. of outputs	1
Input voltage	2-phase units: 400 V ±10 %
Efficiency	0.00
Available output range (V)	0-600VDC
Max output current	0.00
Electronic load input rating power	0.00
Water-cooled option	No
Features: Low ripple and high stability through linear transistor control loop (PTNhp versions down to 0.001 %) Output voltage up to 600 V Output current up to 200 A Ultra-fast recovery times Sense input line for voltage control at the load face 0…10 V Continous short circuit proof Benchtop or 19“ rack mount
Description: Precision high current power supplies from the Heinzinger PTN series are double-stabilized, linear-regulated devices that supply a controlled DC voltage with very low ripple. They are available in various current ratings up to a voltage class of 600 volts with power up to 5,200 Watts and meet the most demanding standards (higher voltages, and power on request). The PTN series offers standard currents up to 200 A (>5,000 A available with PTN3p) with an accuracy of <0.01 %. The units of the PTN series have proven themselves especially in demanding industrial environments, where they are often used in 24-hour continuous operation. Due to their excellent long-term stability and reproducibility, they meet high quality standards over a long period of time in several different industry and research institutes. In addition, Heinzinger offers a wide range of standard options for the PTN, which helps meeting complex requirements such as battery simulation with adjustable internal resistance. Furthermore, the PTN can be adapted to specific requirements, making them an ideal foundation for a variety of applications in the high current range.

Manufacturer
Power	4000.00 W
Package	Rack mount
No. of outputs	1
Input voltage	208/400Vac 3 phase
Efficiency	0.00
Max output current	0.00
Average charging rate	4000J/s
Electronic load input rating power	0.00
Water-cooled option	No
Attachments	Link

Manufacturer
Power	5000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	400VAC
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	444x483x600mm
Water-cooled option	No
Features: Pulsed applications Capacitors Research and Dévelopment Test equipment Accelerators Beams ( electron-ion) TubesOutput Voltage: up to 60kV Output power: 1.5W to 40kW Polarity: positive-negative-reversible-floating Rise -time (10-90%): < 80 ms Ripple + Noise: 0.1% RMS of max output voltage Remote interface : 0-10V analog
Description: SR serie is designed to offer optimal performance in a compact design. SR Power Supply from 700V to 60kV provide high reliability without any special maintenance.

Manufacturer
Power	5200.00 W
Package	19" Rack
No. of outputs	1
Input voltage	3-phase units: 400 V ±10%
Efficiency	0.00
Available output range (V)	0-600VDC
Max output current	0.00
Electronic load input rating power	0.00
Water-cooled option	No
Features: Lowest ripple and highest stability <0.001 % Output voltage up to 600 V Output current up to 200 A Ultra-fast recovery times Sense input line for volta ge control at the load face 0…10 V Continous short circuit proof Benchtop or 19“ rack mount
Description: The ultra high-precision high current power supplies of the Heinzinger PTNhp series have the same characteristics as the units of the PTN series, but with even further improved accuracy and lower ripple. Even as standard, they offer ripple and stability in the range of <0.001%, with a temperature coefficient also in this range. The power supplies of the PTNhp series are suitable for all applications for which the units of the PTN and PTN3p series are also used. However, the requirements from users and applications can be even higher for the PTNhp devices. Absolute reproducibility, DC voltages comparable to a battery and the highest quality requirements in manufacturing enable the implementation of complex development and research tasks in various fields of technology and research. For most versions of the PTN and PTN3p series, Heinzinger also offers the PTNhp series. The ultra high accuracy class is not dependent on the power of the power supply. Different solutions can be implemented depending on application, load type or environment. We would be pleased to provide you with an offer for the power supply that is optimally suited to your application

Manufacturer
Power	6000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	3x400 V ±10% 3p
Efficiency	0.00
Available output range (V)	60000V
Max output current	0.00
Electronic load input rating power	0.00
Water-cooled option	No
Features: Low residual ripple of 10 ppm and excellent long term stability Continuous short circuit proof Reverse voltage proof HV on/off via push button or interface Output power up to 2,000 W Setting of the output values through 10-turn potentiometers, separately for voltage and current Remotely controllable and extendable by means of the integrated analog interface 0…10 V.
Description: The high-precision power supplies of the PNChp series achieve a ripple and stability of <0.001 % in voltage stabilization thanks to constructive measures, optimized circuits and careful selection of high-precision components. Our long experience and our wide know-how in design and construction help us to achieve the best long-term stability of the PNChp series. Already in the standard version the PNChp types offer a ripple and stability in the range of <0.001% in the voltage stabilization, in addition with a low temperature coefficient and an outstanding long-term stability. Especially with the highest quality requirements in manufacturing, the PNChp meets customer needs and is not only used for simple applications, but also for demanding development and research tasks in various technology and research areas, as well as for precise work in the semiconductor industry. The Heinzinger PNChp Series is available for most of the PNC Series, ensuring consistent high accuracy regardless of the power supply power rating

Manufacturer
Power	8000.00 W
Package	Rack mount
No. of outputs	1
Input voltage	208/400Vac 3 phase
Efficiency	0.00
Max output current	0.00
Average charging rate	8000J/s
Electronic load input rating power	0.00
Water-cooled option	No
Attachments	Link

Manufacturer
Power	10000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	400 V ±10 %, 3p
Efficiency	90.00
Available output range (V)	50V
Max output current	0.00
Electronic load input rating power	0.00
Water-cooled option	No
Features: Voltage: 50 V Current: 100 A - 340 A Power: 5/10/15 kW Maximum accuracy and stabilityof 5ppm Temperature coefficient ≤5ppm DCCT current measurement Programmable current ramp function Analog (0 .. 10V) and digital interfaces (RS422) Short circuit proof'
Description: The power supply units of the Heinzinger PCU series are optimized for use as power supplies for magnets. The switch-mode power supplies provide high-precision DC voltage with excellent current stability and extremely low ripple. They are available in typical voltage categories with modular design. Various currents between 100 A and 340 A are available for each power supply. In applications requiring more power, the power supplies can be used in master/slave mode in parallel. The power supplies of the PCU series are used i.e. at well-known research institutes where they are used as reliable magnet power supplies in 24/7 operation. The optimal ratio between power density and maximum precision ensures that the unit complies with the prescribed technical specifications in highly demanding, long-term applications. In all magnet applications demanding the highest in quality, precision and accuracy, our units from the PCU series are your reliable power supply. The performance classes of the various Heinzinger PCU units extend as high as 15 kW (higher on request). Many manual operating and programming features make it easy to customize the units for a wide range of load conditions and requirements. Using the analog and digital interface (available as a standard) you can read and write values to the power supply in a variety of remote control applications.

Manufacturer
Power	15000.00 W
Package	Rack mount
No. of outputs	1
Input voltage	208/400/480Vac 3 phase
Efficiency	0.00
Max output current	0.00
Average charging rate	12000J/s
Electronic load input rating power	0.00
Water-cooled option	No
Attachments	Link

Manufacturer
Power	20000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	400VAC
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	444x483x600mm
Water-cooled option	No
Features: Pulsed applications Capacitors Research and Dévelopment Test equipment Accelerators Beams ( electron-ion) TubesOutput Voltage: up to 60kV Output power: 1.5W to 40kW Polarity: positive-negative-reversible-floating Rise -time (10-90%): < 80 ms Ripple + Noise: 0.1% RMS of max output voltage Remote interface : 0-10V analog
Description: SR serie is designed to offer optimal performance in a compact design. SR Power Supply from 700V to 60kV provide high reliability without any special maintenance.

Manufacturer
Power	30000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	400VAC
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	444x483x600mm
Water-cooled option	No
Features: Pulsed applications Capacitors Research and Dévelopment Test equipment Accelerators Beams ( electron-ion) TubesOutput Voltage: up to 60kV Output power: 1.5W to 40kW Polarity: positive-negative-reversible-floating Rise -time (10-90%): < 80 ms Ripple + Noise: 0.1% RMS of max output voltage Remote interface : 0-10V analog
Description: SR serie is designed to offer optimal performance in a compact design. SR Power Supply from 700V to 60kV provide high reliability without any special maintenance.

Manufacturer
Power	40000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	400VAC
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Dimensions	311x483x600mm
Water-cooled option	No
Features: Pulsed applications Capacitors Research and Development Test equipment Pulsed accelerators Beams (election-ion) Tubes Output Voltage: 80kV to 150kV Output Power: 1.5kW to 40.kW Polarity: Positive or Negative Rise-time(10-90%): <300ms Ripple+Noise:0.1% RMS of max output voltage Remote interface: 0-10V analog
Description: SR serie are designed to offer optimal performance in a compact design. Oil isolated, SR Power Supply from 80kV to 150kV provides high reliability without any special maintenance.

Manufacturer
Power	50000.00 W
Package	Rack mount
No. of outputs	1
Input voltage	400/480Vac 3 phase
Efficiency	0.00
Max output current	0.00
Average charging rate	30000J/s
Electronic load input rating power	0.00
Water-cooled option	No
Attachments	Link

Manufacturer
Power	60000.00 W
Package	Complete power system
No. of outputs	1
Input voltage	400/480Vac 3 phase
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Water-cooled option	No

Manufacturer
Power	80000.00 W
Package	19" Rack
No. of outputs	1
Input voltage	400VAC
Efficiency	0.00
Available output range (V)	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	2 Years
Water-cooled option	No
Features: Beams (Electron-Ion) Tubes Welding Additive manufacturing (3D printing) Sterilization Surface treatment PVD (Physical Vapor Deposition) Voltage: up to 60kV (70kV with no load) Charging Power: 6kW to 80kW+ Polarity: Negative Rise-time(10-90%): <3ms Ripple+Noise: 0.2% RMS of max output voltage Remote interface: 0-10V Analog interface
Description: Single source power supply dedicated to Electron Beam application. EB-K Power Supplies provide rapid rise time and advanced arc management to ensure beam continuity.
