Description:

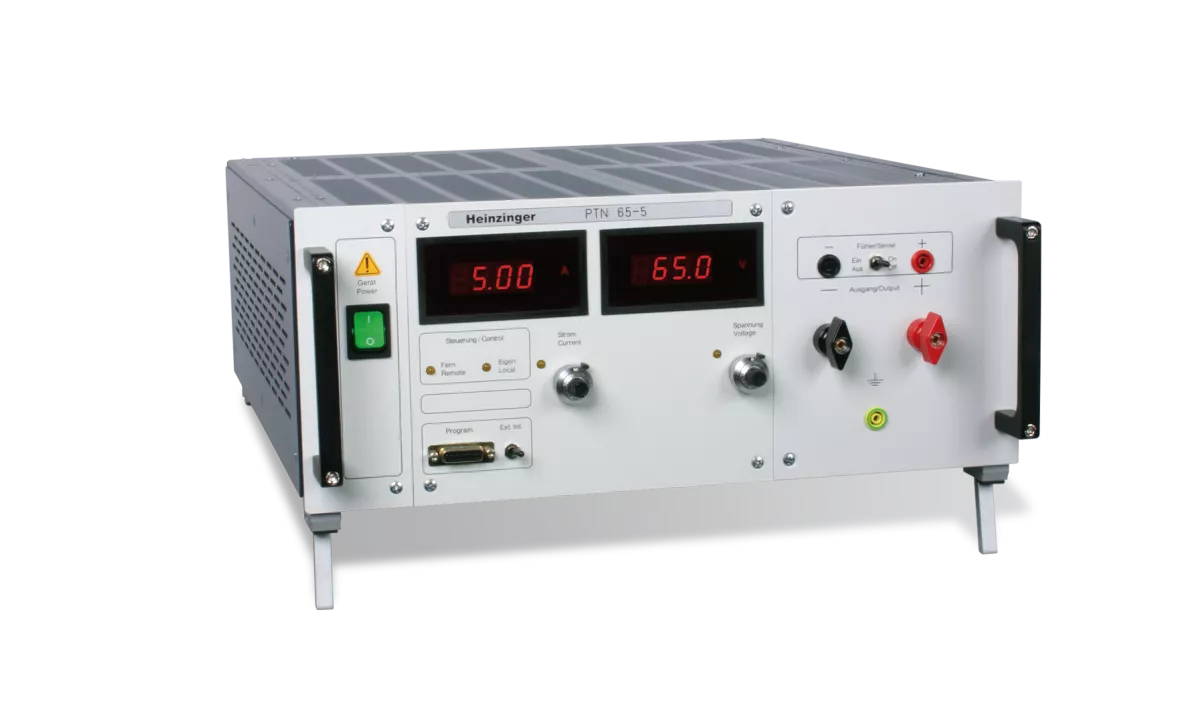

Precision high current power supplies from the Heinzinger PTN series are double-stabilized, linear-regulated devices that supply a controlled DC voltage with very low ripple. They are available in various current ratings up to a voltage class of 600 volts with power up to 5,200 Watts and meet the most demanding standards (higher voltages, and power on request). The PTN series offers standard currents up to 200 A (>5,000 A available with PTN3p) with an accuracy of <0.01 %. The units of the PTN series have proven themselves especially in demanding industrial environments, where they are often used in 24-hour continuous operation. Due to their excellent long-term stability and reproducibility, they meet high quality standards over a long period of time in several different industry and research institutes. In addition, Heinzinger offers a wide range of standard options for the PTN, which helps meeting complex requirements such as battery simulation with adjustable internal resistance. Furthermore, the PTN can be adapted to specific requirements, making them an ideal foundation for a variety of applications in the high current range. |
