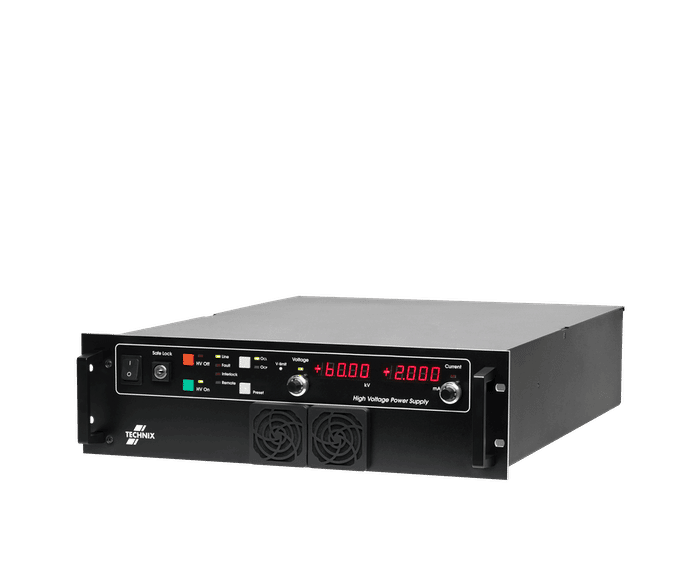

SR HV DC POWER SUPPLY 1.2kW

SR HV DC POWER SUPPLY 1.2kW image
Manufacturer Technix logotype
Power 1200.00 W
Package 19" Rack
Input voltage 230V
Efficiency 0.00
Available output range (V) 0.00
Max output current 0.00
Electronic load input rating power 0.00
Warranty 2 Years
Dimensions 133x483x480mm
Water-cooled option No

Features:

  • Pulsed applications
  • Capacitors
  • Research and Development
  • Test equipment
  • Particle accelerators
  • Beams (electron-ion)
  • Tubes
  • Output Voltage: up to 16kV
  • Output power: 300W to 2000W
  • Polarity: Positive-Negative-Reversible-Floating
  • Rise-time (10-90%): <80ms
  • Ripple+Noise: 0.1% RMS of max output voltage
  • Remote interface: 0-10V analog

Description:

SR series is designed to offer optimal performance in a compact design. Air isolated, SR Power Supply from 700V to 16kV provide high reliability without any special maintenance
Download datasheet
