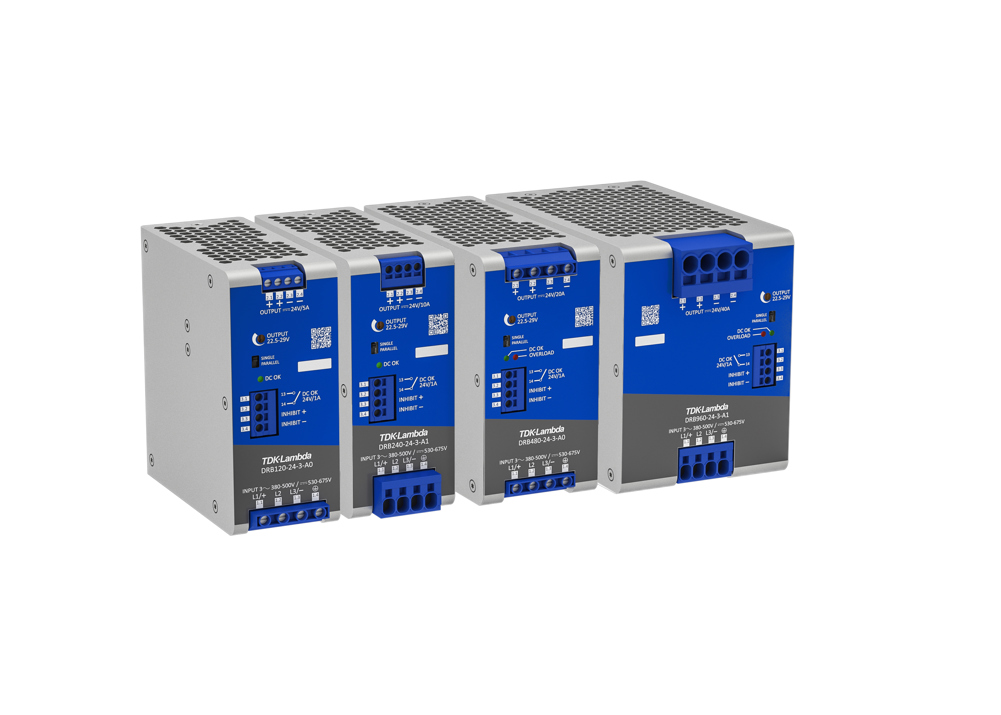

DRB960-3

Features:

• Operation with AC or DC voltage for a wide range of applications
• Parallel mode switch to activate load balancing behaviour
• Integrated GDT for ultimate process stability
• Very low inrush energy peak (I²t) saves cost for input line protection
• Screw or push-in terminals available to serve individual application needs
• High efficiency contributes to an eco-friendly energy footprint
• DC-OK and inhibit relay contacts for professional integration into applications control architecture
• Comprehensive boost power capabilities support start-up into heavy loads
• Exceeds regulatory EMC standards on radiated emission (Class B), surge immunity and fast transients

Description:

The DIN-Rail power supplies in the DRB series are part of TDK-Lambda’s industrial heritage. They can be used in many applications, ranging from conventional switch cabinets and decentralised machinery and systems, to renewable energy and charging solutions. The series covers the popular output voltages of 12, 24, 48 and 72 volts, and users can operate them, both with AC or DC voltage. The DRB’s high operating efficiencies, the use of high-quality electrolytic capacitors and the integration of a gas discharge tube provide maximum system up-time.
