CBS-10K Railway

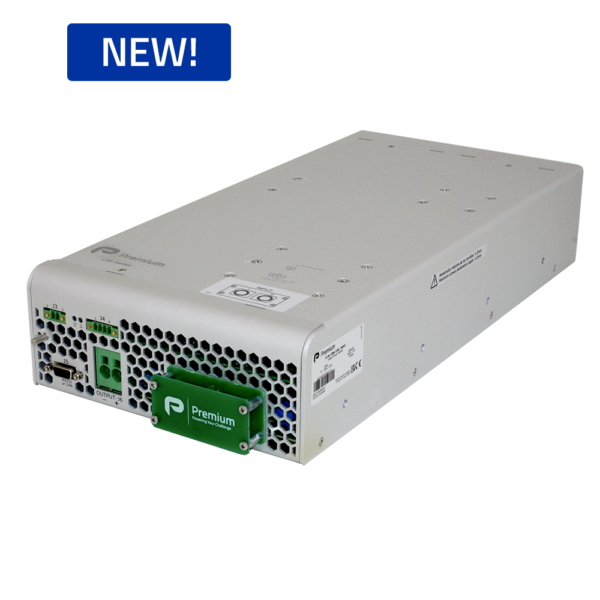

CBS-10K Railway image
Manufacturer Premium logotype
Power
Package Enclosed
No. of outputs 1
Application Railway Version
Input voltage 24/48/72/110Vdc
Efficiency 0.00
Max output current 0.00
Electronic load input rating power 0.00
Warranty 5 years
Dimensions 392x257.4x84.8mm
Weight 7.0
Water-cooled option No

Features:

  • High input-output isolation 5000 Vrms
  • Remote off opto-coupled
  • Alarm by isolated relay contacts
  • Remote control via RS232
  • CAN BUS (optional)
  • Redundant configuration
  • Railway version EN50155
  • Fire and smoke: EN45545-2 approved
  • Up to 10 kW during 40 s
  • O-ring output diode up to 2000V

Description:

The CBS-10K series consists of DC/DC converters, with a galvanic isolation between input and output, operating at fixed switching frequency. The unit can deliver up to 6 kW average and up to 10 kW during 40s (see data table) being protected against overload and short-circuits. The unit includes an ORing diode at the output to decouple it from lines up to 2 kV.
