Source Measure Unit (SMU)

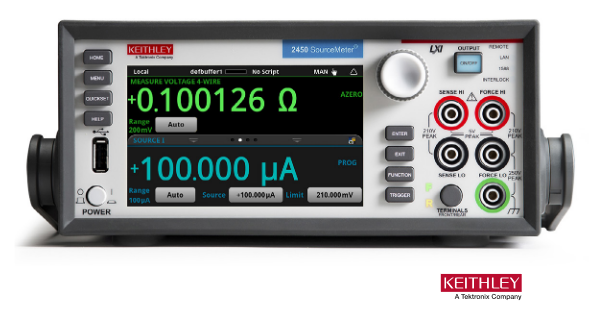

2450

Manufacturer	Keithley
Power	20.00 W
Package	Desktop
No. of outputs	1

Download datasheet

2470

Manufacturer	Keithley
Power	20.00 W
Package	Desktop
No. of outputs	1

Download datasheet

2606B

Manufacturer	Keithley
Power	20.00 W
Package	1U Rack mount
No. of outputs	4

Download datasheet

2401

Manufacturer	Keithley
Power	20.00 W
Package	Desktop
No. of outputs	1

Download datasheet

2400

Manufacturer	Keithley
Power	20.00 W
Package	Desktop
No. of outputs	1

Download datasheet

2410

Manufacturer	Keithley
Power	20.00 W
Package	Desktop
No. of outputs	1

Download datasheet

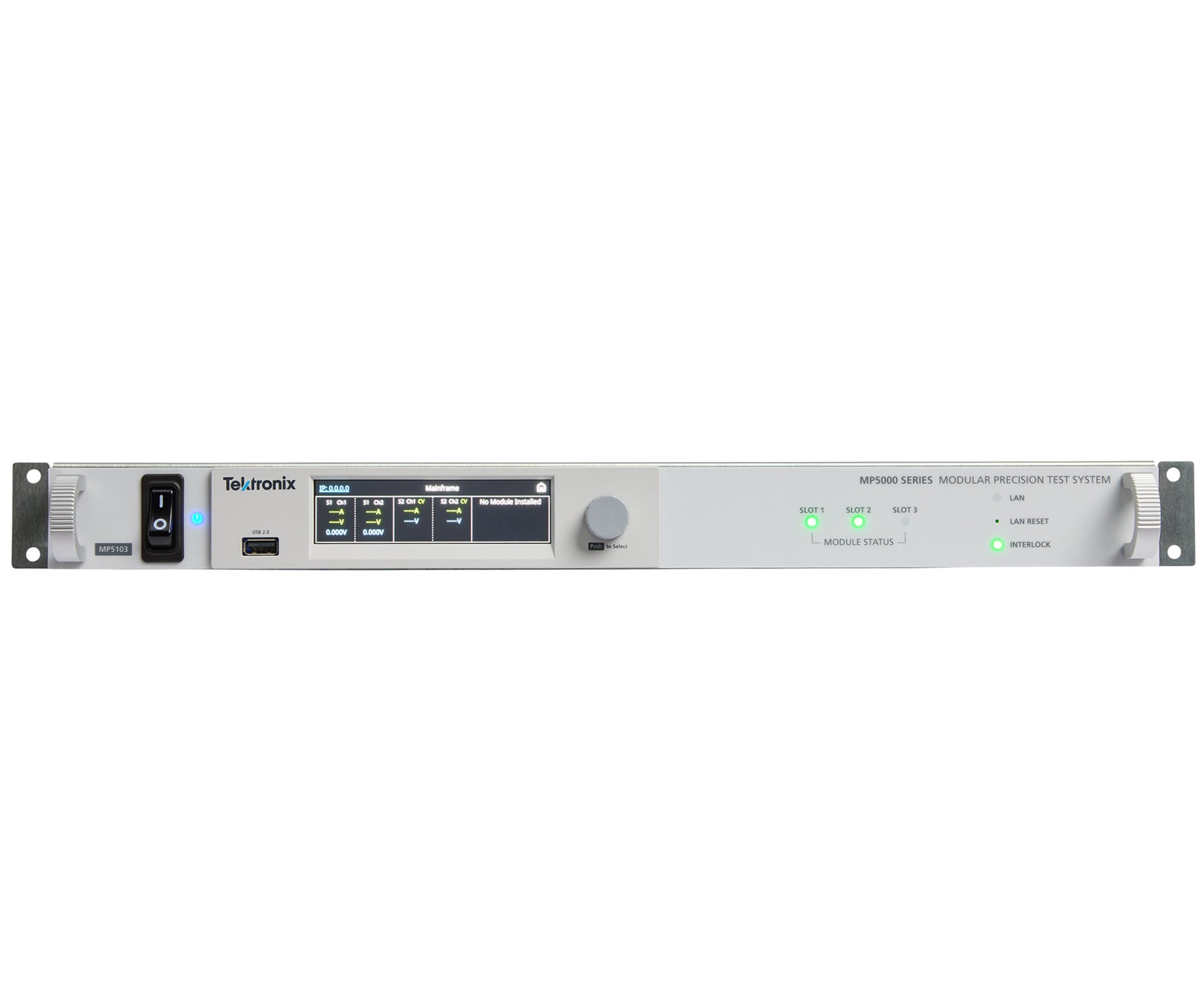

MSMU60-2

Manufacturer	Keithley
Power	30.00 W
Package	1U Rack mount
No. of outputs	2

Download datasheet

2611B

Manufacturer	Keithley
Power	30.30 W
Package	Desktop
No. of outputs	1

Download datasheet

2612B

Manufacturer	Keithley
Power	30.30 W
Package	2U Rack/bench mount
No. of outputs	2

Download datasheet

2635B

Manufacturer	Keithley
Power	30.30 W
Package	2U Rack/bench mount
No. of outputs	1

Download datasheet

2634B

Manufacturer	Keithley
Power	30.30 W
Package	2U Rack/bench mount
No. of outputs	2

Download datasheet

2636B

Manufacturer	Keithley
Power	30.30 W
Package	2U Rack/bench mount
No. of outputs	2

Download datasheet

2601B

Manufacturer	Keithley
Power	40.40 W
Package	Desktop
No. of outputs	1

Download datasheet

2604B

Manufacturer	Keithley
Power	40.40 W
Package	2U Rack/bench mount
No. of outputs	2

Download datasheet

2602B

Manufacturer	Keithley
Power	40.40 W
Package	2U Rack/bench mount
No. of outputs	2

Download datasheet

MPSU50-2ST

Manufacturer	Keithley
Power	50.00 W
Package	1U Rack mount
No. of outputs	2

Download datasheet

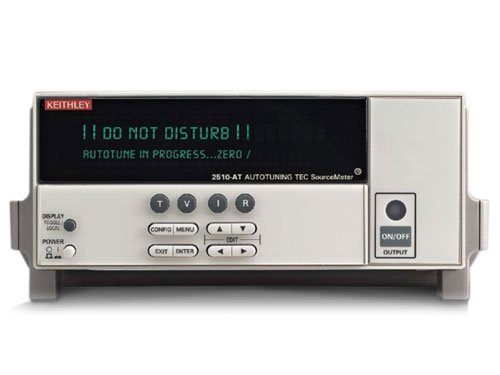

2510

Manufacturer	Keithley
Power	50.00 W
Package	Desktop
No. of outputs	1

Download datasheet

2510-AT

Manufacturer	Keithley
Power	50.00 W
Package	Desktop
No. of outputs	1

Download datasheet

2520

Manufacturer	Keithley
Power	50.00 W
Package	Desktop
No. of outputs	1

Download datasheet

2614B

Manufacturer	Keithley
Power	60.60 W
Package	2U Rack/bench mount
No. of outputs	2

Download datasheet

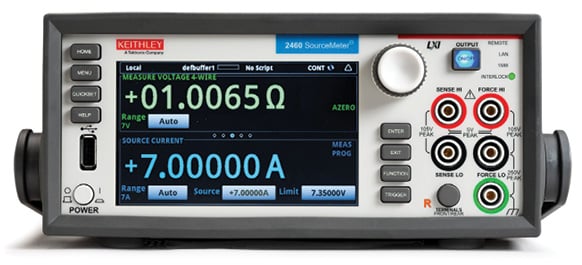

2460

Manufacturer	Keithley
Power	100.00 W
Package	Desktop
No. of outputs	1

Download datasheet

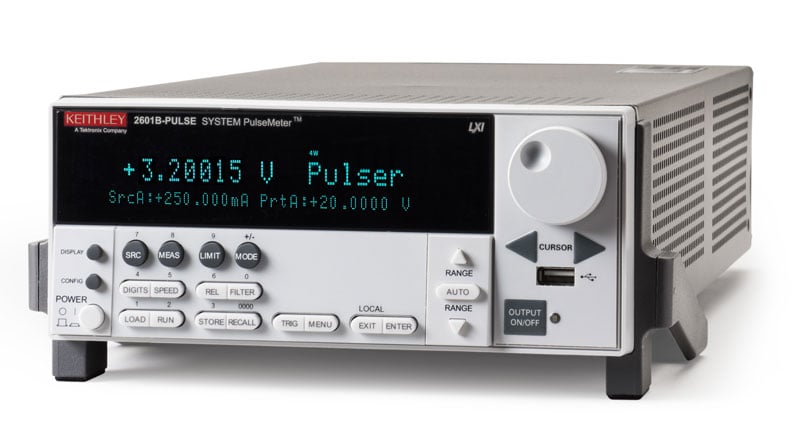

2601B-PULSE

Manufacturer	Keithley
Power	100.00 W
Package	Desktop
No. of outputs	1

Download datasheet

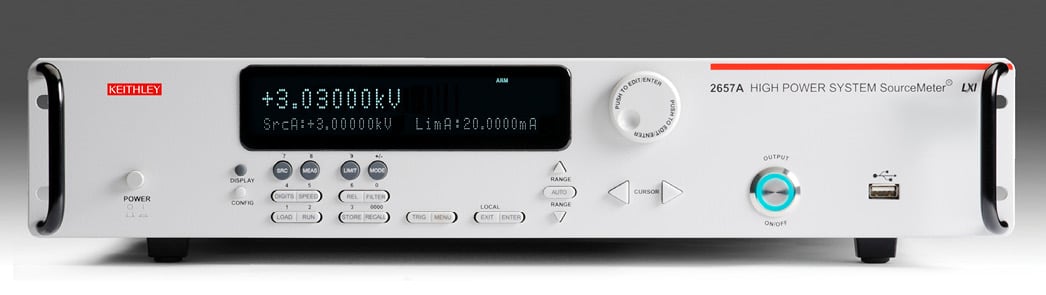

2657A

Manufacturer	Keithley
Power	180.00 W
Package	Desktop
No. of outputs	1

Download datasheet

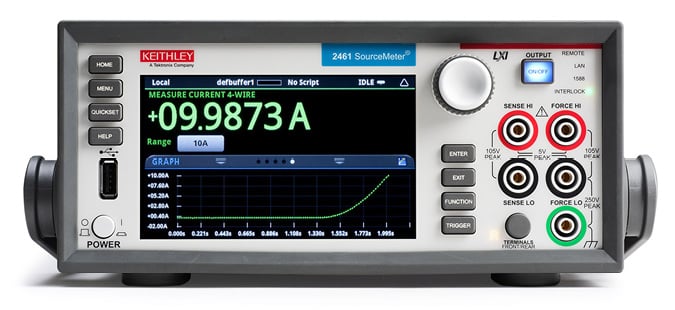

2461

Manufacturer	Keithley
Power	1050.00 W
Package	2U Rack/bench mount
No. of outputs	1

Download datasheet

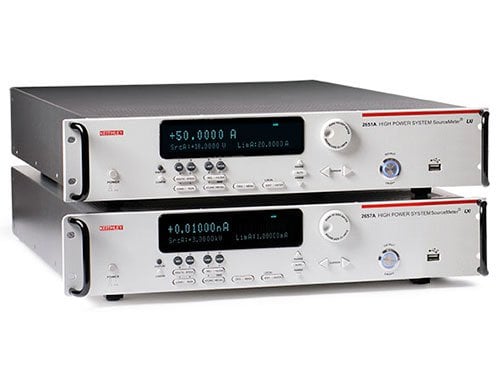

2651A

Manufacturer	Keithley
Power	2000.00 W
Package	2U Rack/bench mount
No. of outputs	1

Download datasheet

Manufacturer
Power	20.00 W
Package	Desktop
No. of outputs	1
Efficiency	0.00
Available output range (V)	200V
Max output current	0.00
Electronic load input rating power	0.00
Warranty	1 Year
Dimensions	106x255x425mm
Weight	4.04
Water-cooled option	No
Features: Capabilities of analyzers, curve tracers, and I-V systems at a fraction of their cost Five-inch, high resolution capacitive touchscreen GUI 0.012% basic measure accuracy with 6½-digit resolution Enhanced sensitivity with new 20mV and 10nA source/ measure ranges Source and sink (four-quadrant) operation Four “Quickset” modes for fast setup and measurements Built-in, context-sensitive front panel help Front panel input banana jacks; rear panel input triaxial connections 2450 SCPI and TSP® scripting programming modes 2400 SCPI-compatible programming mode Front panel USB memory port for storing data, programming, instrument configurations, and to upgrade the unit
Description: The 2450 is Keithley’s next-generation SourceMeter source measure unit (SMU) instrument that truly brings Ohm’s law (current, voltage, and resistance) testing right to your fingertips. Its innovative graphical user interface (GUI) and advanced, capacitive touchscreen technology allow intuitive usage and minimize the learning curve to enable engineers and scientists to learn faster, work smarter, and invent easier. The 2450 is the SMU for everyone: a versatile instrument, particularly well-suited for characterizing modern scaled semiconductors, nano-scale devices and materials, organic semiconductors, printed electronics, and other small-geometry and low power devices. All this combined with Keithley SMU precision and accuracy allows users to Touch, Test, Invent® with the new favorite go-to instrument in the lab for years to come.¨'

Manufacturer
Power	20.00 W
Package	Desktop
No. of outputs	1
Efficiency	0.00
Available output range (V)	1100V
Max output current	0.00
Electronic load input rating power	0.00
Warranty	1 Year
Dimensions	106x255x425mm
Weight	4.54
Water-cooled option	No
Features: Wide coverage up to 1100 V / 1 A DC 20 W max. 10 fA measure resolution 0.012% basic measure accuracy with 6½-digit resolution Five-inch, high resolution capacitive touch screen GUI Source and sink (4-quadrant) operation SCPI and TSP® scripting programming modes TSP-Link for multi-channel I-V testing Front panel input banana jacks; rear panel high-voltage input triaxial connections Built-in context-sensitive help Front-panel USB 2.0 memory I/O port for transferring data, test scripts, and test configurations

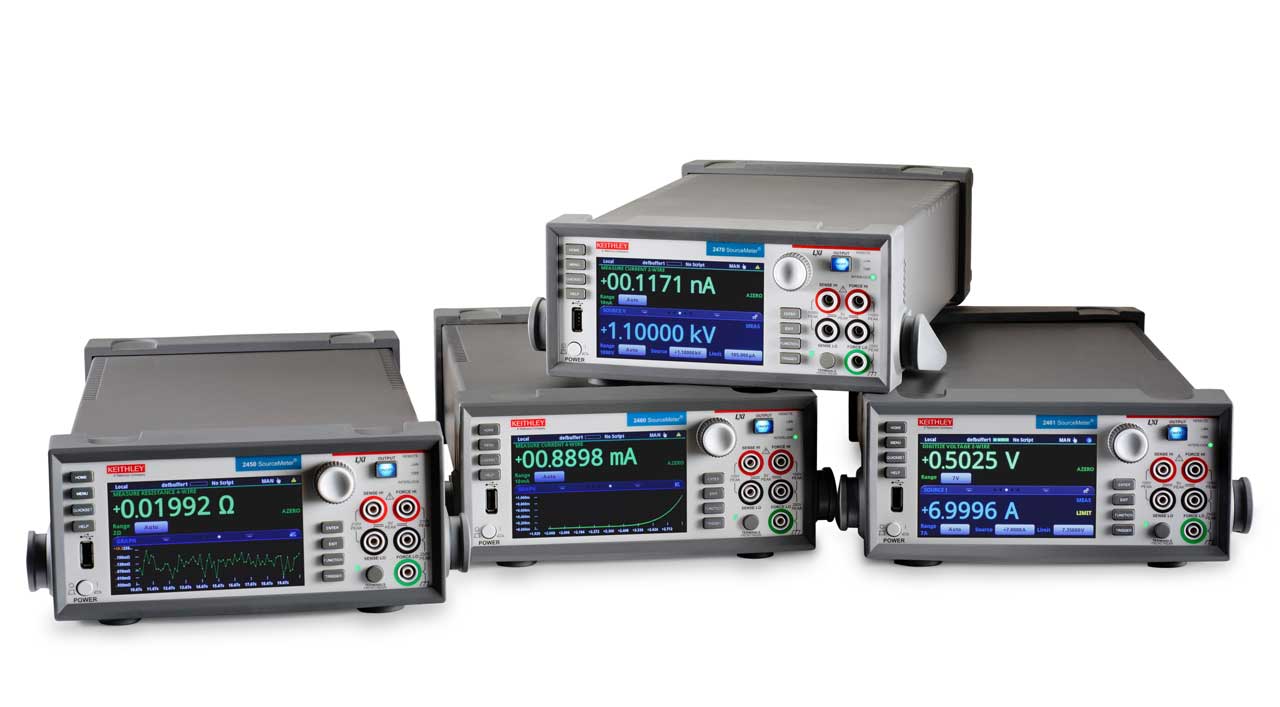

Description: The 2470 High Voltage SourceMeter® Source Measure Unit (SMU) Instrument brings advanced Touch, Test, Invent® technology right to your fingertips. It combines an innovative graphical user interface (GUI) with capacitive touchscreen technology to make testing intuitive and minimize the learning curve to help engineers and scientists learn faster, work smarter, and invent easier. With its 1100 V and 10 fA capability, the 2470 is optimized for characterizing and testing high voltage, low leakage devices, materials, and modules, such as silicon carbide (SiC), gallium nitride (GaN), power MOSFETs, transient suppression devices, circuit protection devices, power modules, batteries, and much more. These new capabilities, combined with Keithley’s decades ofexpertise in developing high precision, high-accuracy SMU instruments, make the 2470 a “go-to instrument” for highvoltage source and low-current measurement applications in the lab and in the test rack.

Manufacturer
Power	20.00 W
Package	1U Rack mount
No. of outputs	4
Input voltage	100-240VAC
Efficiency	0.00
Available output range (V)	0-20
Max output current	0.00
Electronic load input rating power	0.00
Warranty	1 Year
Dimensions	44x483x680mm
Weight	13.6
Water-cooled option	No
Features: Four-channel SMU instrument in a single 1U full rack chassis Stackable; no 1U spacing requirements between units Tightly-integrated voltage/current source and measure instruments offer best in class performance with 6½-digit resolution 20 V @ 1 A and 6 V @ 3 A power envelopes, 20 watts 0.015% DCV basic accuracy Up to 28 open drain digital I/O bits Correlated results to the 2602B System SourceMeter SMU Instrument TSP technology embeds complete test programs inside the instrument for best-in-class system-level throughput TSP-Link expansion technology for multi-channel parallel test without a mainframe Front Panel LAN (LXI-C), USB 2.0 TMC488 protocol, and digital I/O interfaces Built-in web browser based software enables remote control through any browser, on any computer from anywhere in the world

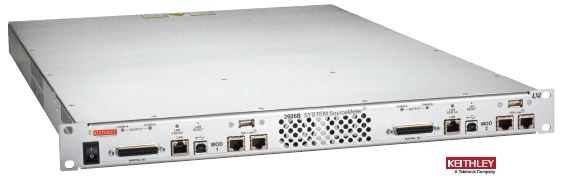

Description: The 2606B System SourceMeter Source Measure Unit (SMU) Instrument offers four 20-watt SMU channels in a 1U high form factor chassis. Built from Keithley’s third generation SMU technology, the 2606B offers the combined capabilities of a precision power supply, true current source, 6½-digit DMM, arbitrary waveform generator, and pulse generator—all into one tightlyintegrated instrument. The result is a powerful solution that significantly boosts productivity for demanding automated qualification and production testing for optoelectronic devices such as VCSELs/laser diodes used in 3D sensing, telecommunication, and LEDs used in consumer products and automobiles, as well as integrated devices like analog ICs, ASICs, and system-on-a-chip (SOC) devices. When a high SMU channel count is required, multiple 2606B units can be stacked on top of each other without the need for thermal spacing between units. Builtin web browser-based software enables communicating to the 2606B through any computer from anywhere in the world. For automated system applications, the 2606B’s Test Script Processor (TSP®) technology runs complete test programs from inside the instrument for industrybest throughput. In larger, multi-channel applications, Keithley’s TSP-Link® technology works together with TSP technology to enable high-speed, SMU-per-pin parallel testing. Each 2606B SMU is code compatible with the industry leading Keithley 2602B System SourceMeter SMU Instrument when you are using the new ranges.

Manufacturer
Power	20.00 W
Package	Desktop
No. of outputs	1
Efficiency	0.00
Available output range (V)	20V
Max output current	0.00
Electronic load input rating power	0.00
Warranty	1 Year
Dimensions	89x213x370mm
Weight	3.21
Water-cooled option	No
Features: Five instruments in one (IV Source, IVR Measure) Five models: 20–100 W DC, 1000 W pulsed, 1100 V to 1 µV Source and sink (4-quadrant) operation 0.012% basic measure accuracy with 6½-digit resolution 2-, 4-, and 6-wire remote V-source and measure sensin1700 readings/second at 4½ digits via GPIB Pass/Fail comparator for fast sorting/binning Programmable DIO port for automation/handler/ prober control (except 2401) Standard SCPI GPIB, RS-232 and Keithley Trigger Link interfaces Download KickStart today and try it out for 60 days.

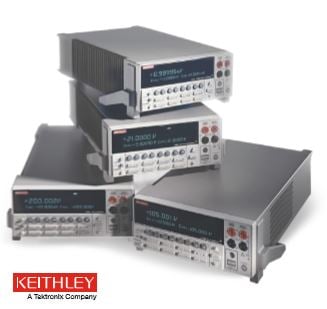

Description: Keithley’s Series 2400 Source Measure Unit (SMU) Instruments are designed specifically for test applications that demand tightly coupled sourcing and measurement. All SourceMeter models provide precision voltage and current sourcing as well as measurement capabilities. Each SourceMeter SMU instrument is both a highly stable DC power source and a true instrument-grade 6½-digit multimeter. The power source characteristics include low noise, precision, and readback. The multimeter capabilities include high repeatability and low noise. The result is a compact, single-channel, DC parametric tester. In operation, these instruments can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter. Manufacturers of components and modules for the communications, semiconductor, computer, automotive, and medical industries will find the SourceMeter SMU instruments invaluable for a wide range of characterization and production test applications.

Manufacturer
Power	20.00 W
Package	Desktop
No. of outputs	1
Input voltage	100-240VAC
Efficiency	0.00
Available output range (V)	200V
Max output current	0.00
Electronic load input rating power	0.00
Warranty	1 Year
Water-cooled option	No
Features: Five instruments in one (IV Source, IVR Measure) Five models: 20–100 W DC, 1000 W pulsed, 1100 V to 1 µV Source and sink (4-quadrant) operation 0.012% basic measure accuracy with 6½-digit resolution 2-, 4-, and 6-wire remote V-source and measure sensin1700 readings/second at 4½ digits via GPIB Pass/Fail comparator for fast sorting/binning Programmable DIO port for automation/handler/ prober control (except 2401) Standard SCPI GPIB, RS-232 and Keithley Trigger Link interfaces Download KickStart today and try it out for 60 days.
Description: Keithley’s Series 2400 Source Measure Unit (SMU) Instruments are designed specifically for test applications that demand tightly coupled sourcing and measurement. All SourceMeter models provide precision voltage and current sourcing as well as measurement capabilities. Each SourceMeter SMU instrument is both a highly stable DC power source and a true instrument-grade 6½-digit multimeter. The power source characteristics include low noise, precision, and readback. The multimeter capabilities include high repeatability and low noise. The result is a compact, single-channel, DC parametric tester. In operation, these instruments can act as a voltage source, a current source, a voltage meter, a current meter, and an ohmmeter. Manufacturers of components and modules for the communications, semiconductor, computer, automotive, and medical industries will find the SourceMeter SMU instruments invaluable for a wide range of characterization and production test applications.
