Digital Multimeter (DMM)

DMM7510

Manufacturer

Keithley

Download datasheet

DMM7510-RACK

Manufacturer

Keithley

Download datasheet

DMM7512

Manufacturer

Keithley

Download datasheet

2010

Manufacturer

Keithley

Download datasheet

2002

Manufacturer

Keithley

Download datasheet

2002/MEM2

Manufacturer

Keithley

Download datasheet

2100/120

Manufacturer

Keithley

Download datasheet

2100/100

Manufacturer

Keithley

Download datasheet

2100/220

Manufacturer

Keithley

Download datasheet

2100/230-240

Manufacturer

Keithley

Download datasheet

DMM6500

Manufacturer

Keithley

Download datasheet

Manufacturer
Power
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	88x213x410mm
Weight	3.63
Water-cooled option	No
Features: Precision multimeter with 3½- to 7½-digit resolution Capture and display waveforms or transients with 1 MS/sec digitizer Large internal memory buffer; store over 11 million readings in standard mode or 27.5 million in compact mode 14 PPM basic one-year DCV accuracy 100 mV, 1 Ω, and 10 µA ranges offer the sensitivity needed for measuring low level signals such as portable device sleep mode currents Make accurate low resistance measurements with offset compensated ohms, four-wire, and dry circuit functions Auto-calibration feature improves accuracy and stability by minimizing temperature and time drift Display more with five-inch, high resolution touchscreen interface Readings and screen images can be saved quickly via the front panel USB memory port Multiple connectivity options: GPIB, USB, and LXIcompliant LAN interfaces Two-year specifications enable longer calibration cycles
Description: The DMM7510 combines all the advantages of a precision digital multimeter, a graphical touchscreen display, and a high speed, high resolution digitizer to create an industry first: a graphical sampling multimeter. The digitizer gives the DMM7510 unprecedented signal analysis flexibility; the five-inch capacitive touchscreen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and high ease of use offers unparalleled insight into your test results.

Manufacturer
Power
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Water-cooled option	No
Features: Precision multimeter with 3½- to 7½-digit resolution Capture and display waveforms or transients with 1 MS/sec digitizer Large internal memory buffer; store over 11 million readings in standard mode or 27.5 million in compact mode 14 PPM basic one-year DCV accuracy 100 mV, 1 Ω, and 10 µA ranges offer the sensitivity needed for measuring low level signals such as portable device sleep mode currents Make accurate low resistance measurements with offset compensated ohms, four-wire, and dry circuit functions Auto-calibration feature improves accuracy and stability by minimizing temperature and time drift Display more with five-inch, high resolution touchscreen interface Readings and screen images can be saved quickly via the front panel USB memory port Multiple connectivity options: GPIB, USB, and LXIcompliant LAN interfaces Two-year specifications enable longer calibration cycles
Description: The DMM7510 combines all the advantages of a precision digital multimeter, a graphical touchscreen display, and a high speed, high resolution digitizer to create an industry first: a graphical sampling multimeter. The digitizer gives the DMM7510 unprecedented signal analysis flexibility; the five-inch capacitive touchscreen display makes it easy to observe, interact with, and explore measurements with “pinch and zoom” simplicity. This combination of high performance and high ease of use offers unparalleled insight into your test results.

Manufacturer
Power
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	44x483x696mm
Weight	11.3
Water-cooled option	No

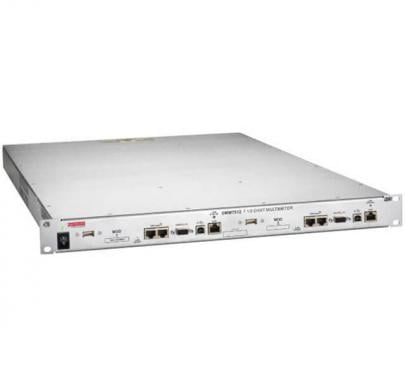

Features: Two high-precision, 7½-digit DMMs in a 1U high, full rack width chassis No space requirements between instruments minimizes rack space Capture waveforms or identify transients with two 1 Msample/s 18-bit digitizers Trigger a waveform measurement on a signal level, a rising or falling edge, a window, or a digital trigger Store up to 27.5M timestamped readings on a waveform Basic one-year DC Voltage accuracy as low as 14 ppm 10 nV, 0.1 µΩ, and 1 pA sensitivities for making high resolution low level measurements such as measurements of portable device sleep currents High accuracy, low resistance measurements with offset compensated ohms, four-wire measurement, and dry circuit functions Auto-calibration improves accuracy and stability byminimizing temperature and time drift USBTMC-compliant and LAN LXI-compliant interfaces Reduce test time by executing test scripts with the Embedded Test Script Processor, which saves PC command communication overhead Tight synchronization between the two DMMs using TSP-Link® communication Reduce life cycle costs with a two-year calibration interval
Description: The DMM7512 Dual Channel 7½-digit Sampling Multimeter combines two full-function, high accuracy and high sampling speed DMMs into a compact 1U high, full rack wide form factor chassis. The compact chassis saves rack space in high-instrument density, test systems. The small size does not compromise measurement performance. Each DMM has identical functionality, and both are entirely independent of each other. The DMMs achieve a basic, one-year accuracy as low as 14 ppm for DC volts, 24 ppm for resistance, and 60 ppm for DC current. Sensitivities of 10 nV, 0.1 µΩ, and 1 pA ensure high quality, high resolution measurements on very small signals. In addition, each DMM has a wide range of functionality including voltage digitizing, current digitizing, and temperature measurements with resistance temperature detectors (RTDs), thermistors, and thermocouples. With dual channel capability, fast signal sampling, high speed data transfer rates reaching up to 100,000 measurements/s, and internal execution of program test scripts, the DMM7512 reduces space and reduces test time in automated test systems.

Manufacturer
Power
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	90x214x369mm
Weight	9.1
Water-cooled option	No
Features: True 7½- (2001) or 8½-digit (2002) resolution Exceptional measurement integrity with high speed High speed function and range changing Broad range of built-in measurement functions Multiple measurement display Built-in 10 channel scanner option GPIB interface HP3458A emulation mode (2002)
Description: DMM users whose applications demand exceptional resolution, accuracy, and sensitivity combined with high throughput now have two attractive alternatives to high priced, high end DMMs. Keithley’s 7½-digit 2001 and 8½-digit 2002 High Performance Digital Multimeters not only deliver performance specifications usually associated with instruments that cost thousands more, but they also offer a broad range of functions not typically available from DMMs. The 2002 is based on the same superior measurement technology as the 2001, and the front panels of both instruments have the same look, feel, and response.

Manufacturer
Power
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Dimensions	90x214x369mm
Weight	9.1
Water-cooled option	No
Features: True 7½- (2001) or 8½-digit (2002) resolution Exceptional measurement integrity with high speed High speed function and range changing Broad range of built-in measurement functions Multiple measurement display Built-in 10 channel scanner option GPIB interface HP3458A emulation mode (2002)
Description: DMM users whose applications demand exceptional resolution, accuracy, and sensitivity combined with high throughput now have two attractive alternatives to high priced, high end DMMs. Keithley’s 7½-digit 2001 and 8½-digit 2002 High Performance Digital Multimeters not only deliver performance specifications usually associated with instruments that cost thousands more, but they also offer a broad range of functions not typically available from DMMs. The 2002 is based on the same superior measurement technology as the 2001, and the front panels of both instruments have the same look, feel, and response.

Manufacturer
Power
Input voltage	120VAC
Efficiency	0.00
Max output current	0.00
Electronic load input rating power	0.00
Warranty	1 Year
Dimensions	112x256x375mm
Weight	4.1
Water-cooled option	No
Features: High precision 6½-digit DMM for critical measurements at a 5½-digit price 11 measurement functions cover most commonly measured parameters Fully specified accuracies on all functions for ISO -compliant results Included PC software utilities for graphing and data sharing in both Microsoft® Word and Excel Rugged construction for durability in bench/portable applications Selectable front/rear inputs facilitate bench or rack use Includes all accessories, such as startup software, USB cable, power cable, and safety test lead, for lowest total cost CE compliant and UL listed TMC compliant USB 2.0 interface for use with SCPI test programs
Description: The Model 2100 USB Digital Multimeter is the newest member of Keithley’s family of high performance DMMs. Its high accuracy (38ppm), 6½-digit resolution is ideal for critical measurements. The Model 2100 features 11 measurement functions and 8 math functions to easily accommodate the most commonly measured parameters. All accessories, such as USB cable, probes, and software, are included with the Model 2100. With its unique combination of high precision and low total cost of ownership, the Model 2100 is an unbeatable value for R&D engineers, test engineers, scientists, and students making basic precision measurements on the bench and in system applications.
